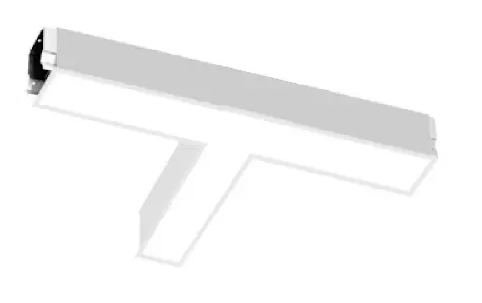

EnVision LED-ALIN2-T-D-5CCT-WH – T-Shape Connector Downlight

Product Overview

The EnVision LED-ALIN2-T-D-5CCT-WH is a recessed downlight with installer-selectable wattage (7 / 5 / 3.5 W) and five field-selectable color temperatures (2700K–5000K).

It accepts 120–277V input, supports 0–10V dimming, and provides up to 840 lumens at the highest wattage setting. The fixture is intended for dry-location ceilings and comes in a white finish.

Key Features

• Installer-selectable wattage: 7 W, 5 W, or 3.5 W
• Lumen outputs: 840 / 600 / 420 corresponding to 7 / 5 / 3.5 W
• Field-selectable 5 CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Wide input voltage: 120–277 V
• 0–10V dimming
• 110° nominal beam angle
• CRI greater than 80
• White finish; rated for dry locations
• ETL listed; 5-year warranty
• Packaged 20 per box

What this downlight does

The LED-ALIN2-T-D-5CCT-WH is a recessed downlight designed to provide general ambient illumination in dry interior ceilings. Its selectable wattage and CCT options allow a single SKU to serve multiple lighting needs without requiring different fixture orders.

• Recessed downlight for dry locations
• Single SKU with field-selectable wattage and color temperature

Light output and optical performance

Light output depends on the selected wattage. The fixture lists lumen values for each wattage setting and a nominal 110° beam angle. Color rendering is specified as greater than CRI 80.

• Wattage / lumen outputs: 7 W = 840 lm; 5 W = 600 lm; 3.5 W = 420 lm
• Beam angle: 110° (nominal)
• CRI: >80

Electrical and control requirements

The fixture accepts 120–277 V input and supports 0–10V dimming. Wattage and CCT settings are selected on the fixture during installation.

• Input voltage: 120–277 V
• Dimming: 0–10V
• Wattage and CCT are set at the fixture during installation

Installation and selection notes

Verify ceiling cutout or compatible housing before ordering. Set the desired wattage and CCT using the onboard switches before final mounting. The product is packaged 20 units per box.

• Field-selectable CCT options: 2700K, 3000K, 3500K, 4000K, 5000K
• Set wattage and CCT switches prior to final installation
• Pack quantity: 20 per box

Certifications, finish and suitability

The fixture has a white finish, is rated for dry locations, is ETL listed, and carries a 5-year warranty.

• Finish: White
• Location rating: Dry location
• Certification: ETL listed
• Warranty: 5 years

Before You Order

Verify the ceiling cutout or compatible housing and confirm quantities before ordering. Plan to set the fixture’s wattage and CCT switches during installation.

• Confirm ceiling cutout or compatible housing
• Plan to set wattage (7/5/3.5 W) and CCT (2700K–5000K) at installation
• Confirm compatibility with any 0–10V control systems to be used

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-T-D-5CCT-WH – T-Shape Connector Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
