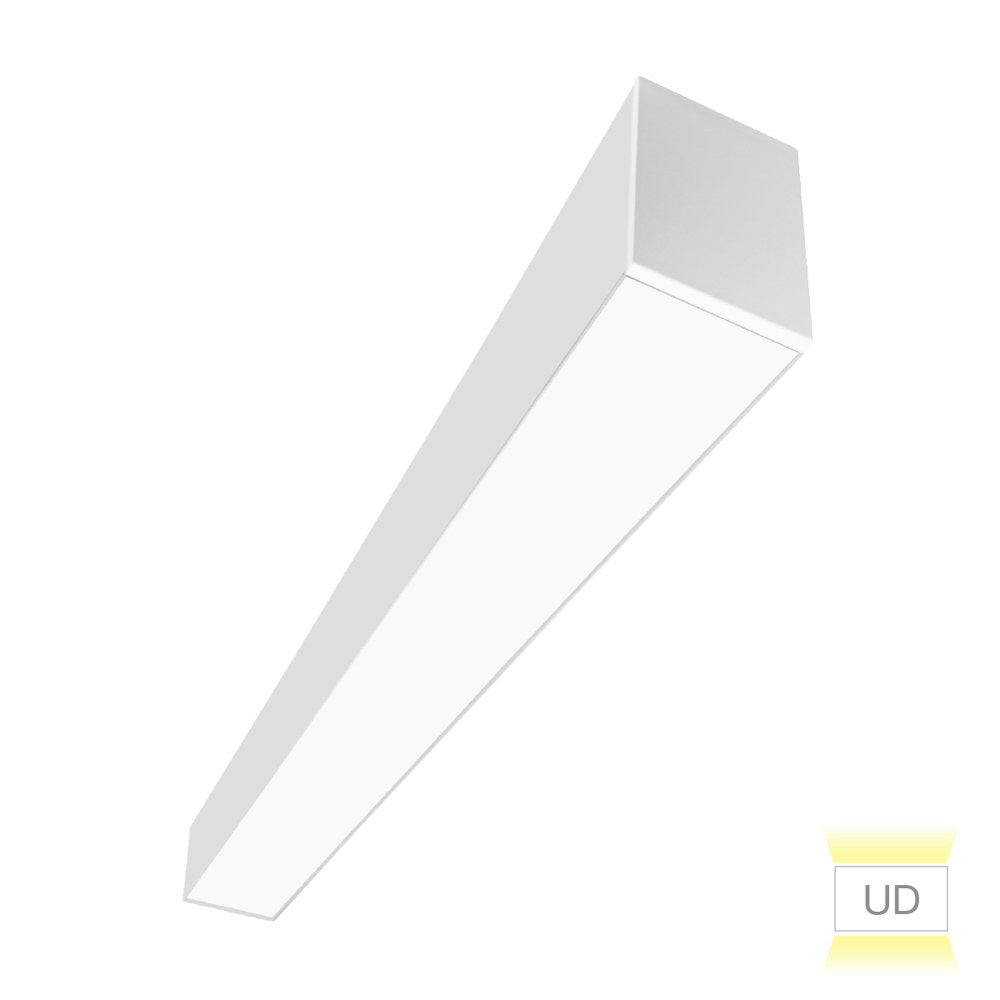

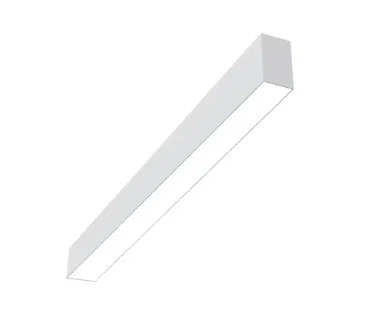

EnVision LED-ALIN2-8FT-3P100-D-5CCT-WH-TML – 8' Architectural Linear Downlight

Product Overview

The EnVision LED-ALIN2-8FT-3P100-D-5CCT-WH-TML is an 8-foot architectural recessed linear downlight with field-selectable wattage and color temperature. It supports three power settings (80/60/40W) and five CCT options (2700K–5000K) to reduce SKUs on a project.

Intended for dry-location ceilings, the fixture delivers up to 9,600 lumens at the highest wattage, offers 0–10V dimming, and comes in a white finish. The product is ETL listed and includes a 5-year warranty.

Key Features

• Selectable wattage: 80W / 60W / 40W set at install
• Lumen outputs: 9,600 lm / 7,200 lm / 4,800 lm corresponding to 80/60/40W
• Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Dimming: 0–10V control
• Wide beam: 110°
• Color rendering: CRI > 80
• Input voltage: 120–277V
• Rating & finish: Dry location, white
• Certifications & warranty: ETL listed, 5-year warranty
• Packaging: 4 units per box

What this fixture does

This 8-foot linear recessed downlight provides broad, even area illumination for dry-location ceilings. Field-selectable wattage and CCT let a single SKU serve multiple lumen and color requirements on site.

• Applications typically include hospitality corridors, residential common areas, and other dry-location recessed ceiling layouts
• White finish for a neutral architectural appearance

Light output and optical performance

Select the output level and color temperature to match the space. The fixture offers three wattage settings and five CCT options, and a wide 110° beam for even coverage.

• Wattage options: 80W / 60W / 40W
• Lumen outputs: 9,600 lm (80W), 7,200 lm (60W), 4,800 lm (40W)
• Beam angle: 110°
• Color rendering: CRI > 80

Electrical and control requirements

The fixture accepts a wide input voltage range and supports low-voltage dimming control.

• Input voltage: 120–277V
• Dimming: 0–10V (requires compatible control wiring and driver)

Installation and configuration

Set the desired wattage and CCT on the fixture before final mounting. Confirm ceiling cutout or grid compatibility with the housing prior to ordering and installation.

• Field-selectable settings: Wattage (80/60/40W) and CCT (2700K–5000K)
• Packaged quantity: 4 units per box
• Rated for dry locations only

Certifications and warranty

The product is ETL listed and includes a 5-year warranty as provided by the manufacturer.

• ETL listed
• 5-year warranty

Before You Order

Verify ceiling cutout or grid compatibility with the housing and confirm required quantity.

• Confirm ceiling cutout or grid compatibility with the housing
• Decide and set wattage (80/60/40W) and CCT (2700K–5000K) at install
• Ensure 0–10V dimming compatibility if dimming control is required

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-8FT-3P100-D-5CCT-WH-TML – 8' Architectural Linear Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
