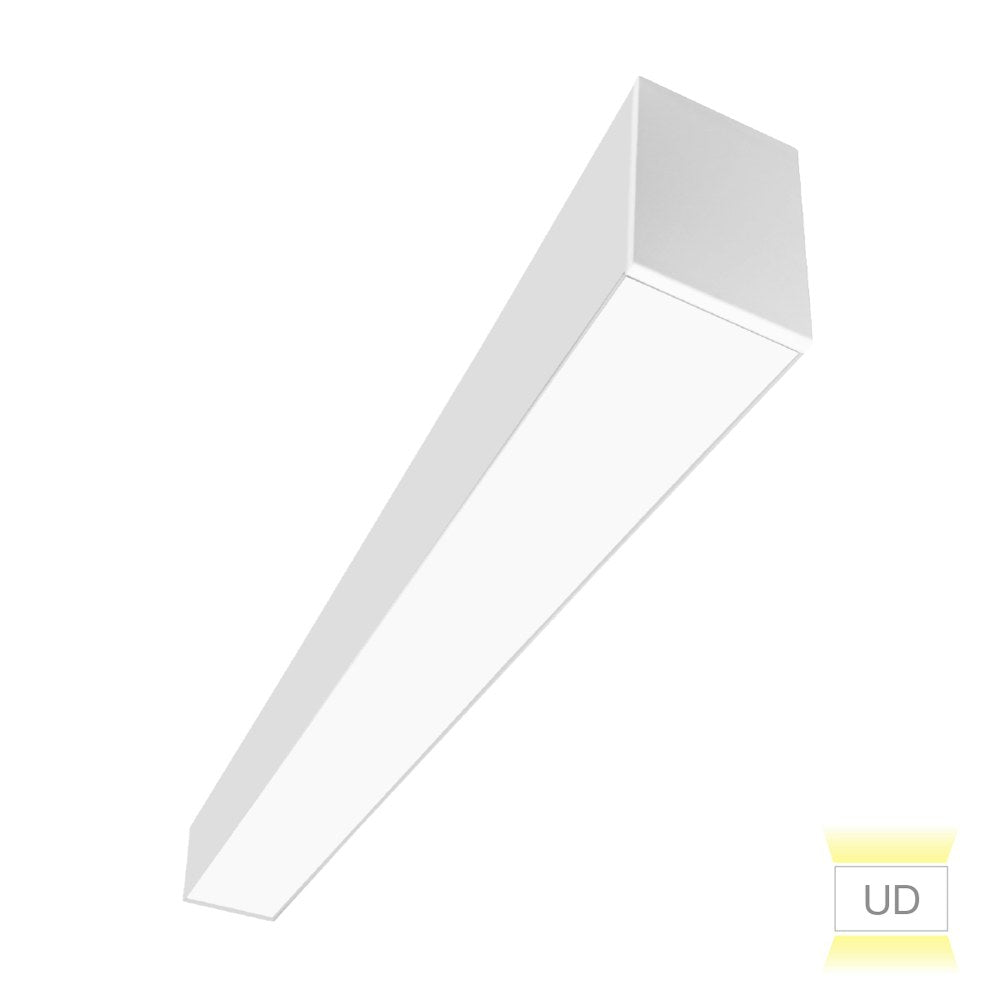

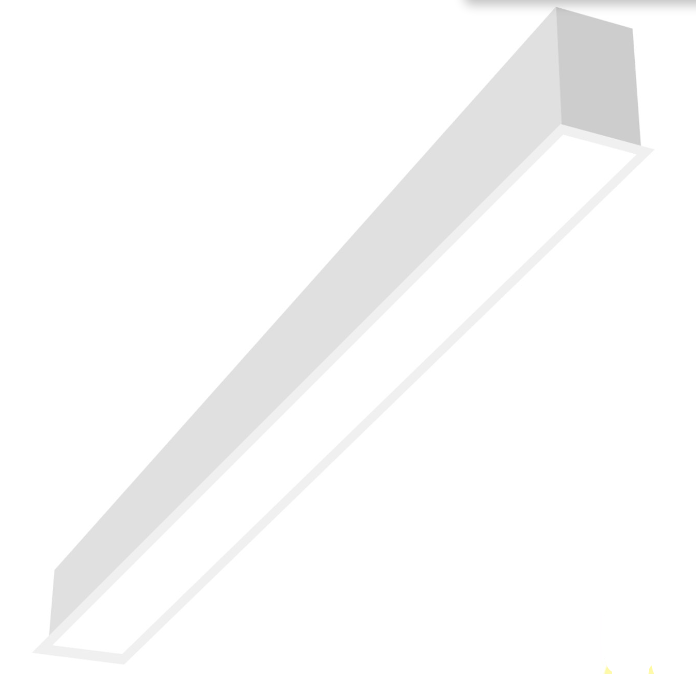

EnVision LED-ALIN2-8FT-3P100-D-5CCT-WH-RTK – 8' Architectural Linear Downlight

Product Overview

The EnVision LED-ALIN2-8FT-3P100-D-5CCT-WH-RTK is an 8-foot recessed architectural linear downlight for commercial interiors. One SKU supports field-selectable wattage (80/60/40 W) and five color temperatures (2700K–5000K) to cover multiple application needs.

This model provides up to 9,600 lumens depending on selected wattage, 0–10V dimming, a 110° beam angle, and is ETL listed for dry locations. Finish: white. Packaged 4 per box.

Key Features

• Field-selectable wattage: 80 / 60 / 40 W (set at install)
• Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Output options: 9,600 / 7,200 / 4,800 lumens (corresponding to selected wattage)
• Universal voltage: 120–277V
• Dimming: 0–10V control
• Beam angle: 110°
• Color rendering: CRI > 80
• Rated for dry locations; ETL listed; 5-year warranty
• White finish; 4 units per box

What this fixture does

This recessed linear downlight provides general illumination for commercial interiors. Field-selectable wattage and CCT let a single SKU be configured at install to match lighting needs without ordering additional fixtures.

• One fixture supports three wattage/lumen settings selectable during installation
• Five CCT choices (2700K–5000K) selectable in the field

Light output and selectable performance

Lumen output varies by the chosen wattage. Select the appropriate wattage at install to meet the space's illuminance requirements.

• 80 W → 9,600 lumens
• 60 W → 7,200 lumens
• 40 W → 4,800 lumens
• 110° beam angle for broad distribution
• CRI > 80

Controls and dimming compatibility

The fixture provides a 0–10V wired dimming interface and operates on 120–277V mains. Use compatible 0–10V control gear for dimming.

• 0–10V dimming interface
• 120–277V input

Recommended applications

Suitable for recessed ceiling layouts in commercial settings where configurable output and color temperature are beneficial.

• Retail and office fit-outs
• Hospitality interiors
• Dry-location residential ceilings

Installation and ordering considerations

Set the wattage and CCT switches before final mounting and confirm that the ceiling cutout or grid is compatible with the fixture housing.

• Verify ceiling cutout or grid compatibility with the fixture housing
• Set desired wattage (80/60/40 W) and CCT (2700K–5000K) at installation
• Packaged 4 units per box

Before You Order

Verify ceiling cutout or housing compatibility and plan the desired wattage and CCT settings to be configured at installation.

• Confirm ceiling cutout or grid compatibility with the fixture housing
• Plan which wattage (80/60/40 W) and CCT (2700K–5000K) settings you will set at install

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-8FT-3P100-D-5CCT-WH-RTK – 8' Architectural Linear Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
