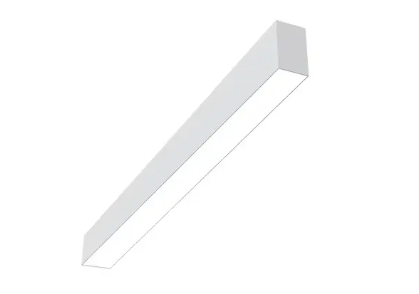

EnVision LED-ALIN2-6FT-3P75-D-5CCT-WH-TML – 6' Architectural Linear Downlight

Product Overview

The EnVision LED-ALIN2-6FT-3P75-D-5CCT-WH-TML is a 6-foot architectural linear downlight for retail and office fit-outs, hospitality and residential ceilings, corridors, and common areas.

It offers selectable 30W, 45W, or 60W operation and five selectable color temperatures from 2700K to 5000K. It operates on 120-277V and supports 0-10V dimming.

Key Features

• Selectable power: 30W, 45W, or 60W
• Lumen outputs: 5,040 lumens at 30W, 5,400 lumens at 45W, and 7,200 lumens at 60W
• Five selectable CCT settings spanning 2700K-5000K
• 0-10V dimming and 110° beam angle
• CRI greater than 80; dry-location rating
• White finish; ETL listed; 5-year warranty
• Packaged four per box

Selectable Wattage and Color Temperature

This EnVision linear downlight provides three selectable wattage settings and five selectable CCT settings. Set the wattage and color temperature at the fixture rather than choosing a separate SKU for each listed setting.

• 30W: 5,040 lumens
• 45W: 5,400 lumens
• 60W: 7,200 lumens
• Selectable CCT range: 2700K-5000K

Dimming and Electrical Details

The fixture is rated for 120-277V operation and uses 0-10V dimming. Its listed beam angle is 110°, and its color rendering rating is CRI greater than 80.

Where This Linear Downlight Can Be Used

Listed applications include retail and office fit-outs, hospitality and residential ceilings, corridors, and common areas. The fixture is rated for dry locations.

Before You Order

Confirm that the ceiling cutout or grid size matches the housing. Set the wattage and CCT switches before final mounting.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-6FT-3P75-D-5CCT-WH-TML – 6' Architectural Linear Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
