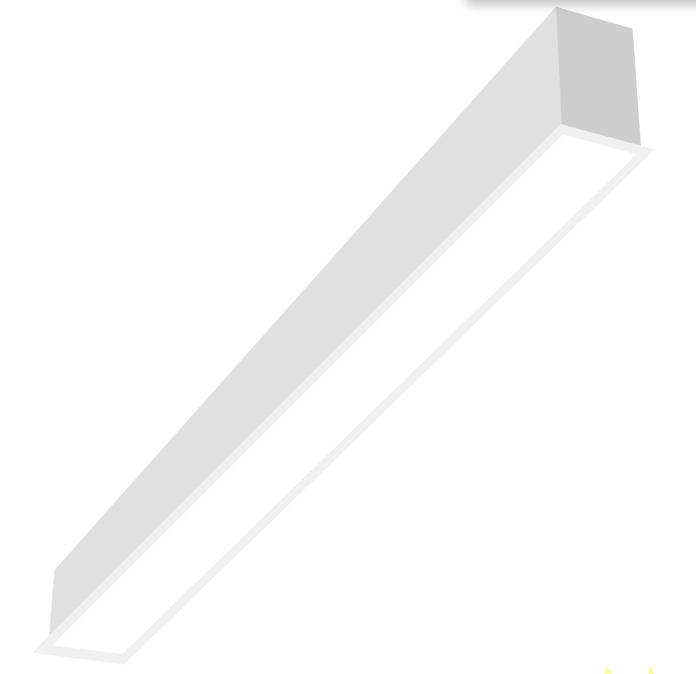

EnVision LED-ALIN2-6FT-3P75-D-5CCT-WH-RTK – 6' Architectural Linear Downlight

Product Overview

The EnVision LED-ALIN2-6FT-3P75-D-5CCT-WH-RTK is a 6-foot recessed architectural linear downlight with installer-selectable wattage and color temperature for flexible specification use.

A single SKU provides three selectable power settings (60/45/30W) and five field-selectable CCT options (2700K–5000K), with a 110° beam angle, 0–10V dimming, and universal 120–277V input.

Key Features

• Installer-selectable power: 60W, 45W, or 30W
• Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Output up to 7,200 lumens depending on selected wattage
• 0–10V dimming
• 110° beam angle
• Color rendering CRI >80
• Rated for Dry Location; white finish
• ETL listed; 5-year warranty
• Packaged 4 per box

What this fixture does

Answer: The LED-ALIN2-6FT-3P75-D-5CCT-WH-RTK is a recessed linear downlight intended for commercial interior spaces such as corridors, common areas, retail, and office fit-outs.

It is supplied as a single configurable SKU that allows on-site selection of wattage and CCT to suit differing application needs.

• Recessed linear downlight for commercial interiors
• White finish for common ceiling applications

Performance and light output

Answer: Lumen output varies with the selected wattage; the highest listed output is 7,200 lumens at the top wattage setting.

The fixture provides a wide 110° beam angle and is specified with CRI greater than 80.

• Wattage options: 60W, 45W, 30W
• Lumen outputs (per source): 7,200 / 5,400 / 5,040
• Beam angle: 110°
• Color rendering: CRI >80

Controls and dimming

Answer: The product supports 0–10V analog dimming and accepts 120–277V input.

Wattage and CCT are set on the fixture; verify your control wiring and dimmer compatibility as part of project planning.

• Dimming: 0–10V
• Voltage: 120–277V universal input
• Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K

Mounting and installation notes

Answer: This fixture is intended for recessed mounting into compatible housings or ceiling grids.

Set the desired wattage and color temperature switches on the fixture before final mounting.

• Location rating: Dry Location
• Confirm ceiling cutout or grid size matches the housing before ordering
• Set wattage and CCT during installation

Technical specifications

Answer: Key rated attributes are listed for specification and procurement reference.

• Brand: EnVision
• Model / SKU: LED-ALIN2-6FT-3P75-D-5CCT-WH-RTK
• Finish: White
• Wattage: 60 / 45 / 30W (installer-selectable)
• Lumens: 7,200 / 5,400 / 5,040 (dependent on wattage)
• Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
• Voltage: 120–277V
• Dimming: 0–10V
• Beam Angle: 110°
• CRI: >80
• Location Rating: Dry Location
• Certification: ETL listed; 5-year warranty
• Box Quantity: 4 per carton

Before You Order

Confirm the model number and quantity required. Verify the ceiling cutout or grid dimensions and that the installation environment is suitable for a Dry Location rated fixture.

Decide required wattage and CCT before final mounting since these settings are configured on the fixture.

• Confirm compatibility with ceiling housing/grid before purchase
• Decide wattage (60/45/30W) and CCT (2700K–5000K) prior to final install
• Verify 0–10V control wiring and that supply is 120–277V
