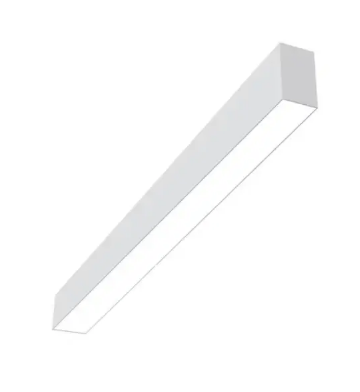

EnVision LED-ALIN2-6FT-3P75-D-5CCT-WH – 6' Architectural Linear Downlight

Product Overview

The EnVision LED-ALIN2-6FT-3P75-D-5CCT-WH is a 6-foot architectural linear LED downlight for recessed ceiling layouts. It operates on 120-277V and has selectable wattage and color temperature.

Choose 30W, 45W or 60W, with listed lumen outputs of 5,040, 5,400 and 7,200 respectively. Features include 0-10V dimming, a 110° beam angle and a white finish.

Key Features

• Selectable 30W, 45W or 60W output with corresponding listed outputs of 5,040, 5,400 or 7,200 lumens
• Five selectable color temperatures from 2700K to 5000K
• 120-277V operation and 0-10V dimming
• 110° beam angle and CRI greater than 80
• Dry-location rated, ETL Listed and backed by a 5-year warranty

Selectable Wattage and Color Temperature

This EnVision downlight provides three selectable power settings: 30W, 45W and 60W. The listed lumen outputs are 5,040 lumens at 30W, 5,400 lumens at 45W and 7,200 lumens at 60W.

Its five selectable color temperatures span 2700K to 5000K. Set the wattage and CCT switches before final mounting.

Voltage and Dimming

The fixture operates on 120-277V and uses 0-10V dimming. It has a 110° beam angle and a CRI greater than 80.

6-Foot Linear Downlight for Recessed Ceilings

The 6-foot architectural linear format is intended for recessed ceiling layouts. Listed applications include retail and office fit-outs, as well as hospitality and residential ceilings.

Confirm that the ceiling cutout or grid size matches the housing before ordering.

Rating, Finish and Package Information

The downlight has a white finish and a dry-location rating. It is ETL Listed and carries a 5-year warranty. The box quantity is four.

Before You Order

Confirm that the ceiling cutout or grid size matches the housing before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-6FT-3P75-D-5CCT-WH – 6' Architectural Linear Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
