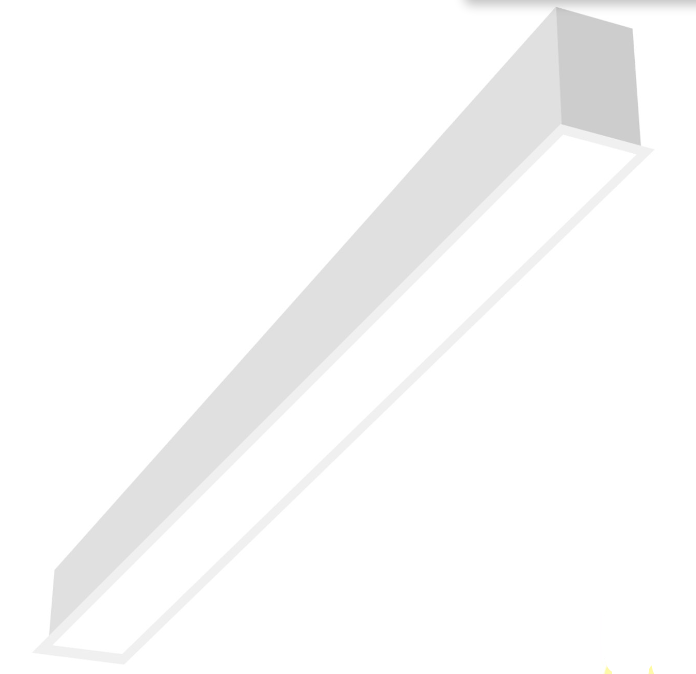

EnVision LED-ALIN2-4FT-3P50-D-5CCT-WH-RTK – 4' Architectural Linear Downlight

Product Overview

The EnVision LED-ALIN2-4FT-3P50-D-5CCT-WH-RTK is a 4-foot architectural linear downlight with selectable wattage and color temperature. It operates on 120–277V and has a white finish.

Choose from 20W, 30W or 40W settings, with corresponding outputs of 2,400, 3,600 or 4,800 lumens. The fixture offers five selectable color temperatures across 2700K–5000K.

Key Features

• Selectable output: 20W/2,400 lumens, 30W/3,600 lumens or 40W/4,800 lumens
• Five selectable CCT settings across 2700K–5000K
• 0–10V dimming and 110° beam angle
• CRI greater than 80; dry-location rating
• ETL listed; five-year warranty
• White finish; packaged six per box

Selectable Wattage and Light Output

This EnVision linear downlight offers three selectable power and output settings: 20W at 2,400 lumens, 30W at 3,600 lumens, or 40W at 4,800 lumens.

Color Temperature and Dimming

The fixture offers five selectable color temperature settings across 2700K–5000K and supports 0–10V dimming.

• Beam angle: 110°
• Color rendering: CRI greater than 80

Applications and Location Rating

Suitable applications include hospitality and residential ceilings, corridors, common areas, and recessed ceiling layouts. The fixture is rated for dry locations.

• Finish: White

Before You Order

Confirm that the ceiling cutout or grid size matches the housing.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-4FT-3P50-D-5CCT-WH-RTK – 4' Architectural Linear Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
