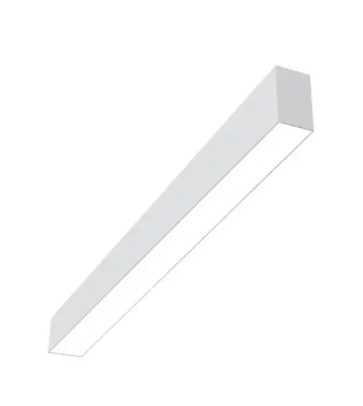

EnVision LED-ALIN2-4FT-3P50-D-5CCT-WH – 4' Architectural Linear Downlight

Product Overview

The EnVision LED-ALIN2-4FT-3P50-D-5CCT-WH is a 4-foot recessed architectural linear downlight with field-selectable wattage and color temperature to reduce SKUs and allow on-site tuning.

This single SKU offers three selectable outputs (40/30/20W) with corresponding lumen packages, five CCT settings (2700K–5000K), 0–10V dimming compatibility, a 110° beam angle, and an ETL listing for dry locations.

Key Features

• Selectable power: 40W / 30W / 20W (set at installation)
• Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Lumen packages: 4,800 / 3,600 / 2,400 lm (corresponding to selected wattage)
• Universal input voltage: 120–277V
• Dimming: 0–10V control
• Beam angle: 110°
• Color rendering: CRI >80
• Finish: White; rated for Dry Locations; ETL listed; 5-year warranty

Purpose and typical applications

This 4' architectural linear downlight is intended for general lighting in corridors, common areas, retail spaces and office fit-outs where a recessed linear appearance is desired.

The field-selectable wattage and CCT let installers adjust output and color on-site and reduce the need for multiple SKUs.

• Suitable for corridors, lobbies, retail and office ceiling layouts
• White finish for a neutral architectural look
• Packaged six per box

Output and optical performance

Select the fixture output during installation: 40W (4,800 lm), 30W (3,600 lm) or 20W (2,400 lm). The listed lumen values correspond to each selectable wattage.

A 110° beam angle provides wide, even coverage appropriate for general ambient illumination.

• Field-selectable lumen packages: 4,800 / 3,600 / 2,400 lm
• Beam angle: 110°
• Color rendering: CRI >80

Electrical and dimming requirements

The fixture accepts 120–277V input, compatible with common North American commercial power systems.

Integrated 0–10V dimming requires a compatible external 0–10V control device to adjust light level.

• Input voltage: 120–277V
• Dimming: 0–10V (requires external 0–10V control)
• Set wattage using onboard switch before final installation

Mounting and configuration notes

Verify the ceiling cutout or grid dimensions match the fixture housing prior to ordering. Set the wattage and CCT using the onboard switches before completing the mounting.

This product is rated for Dry Locations; do not assume suitability for wet or damp environments unless additional housings or protections are specified.

• Field-selectable CCT (2700K–5000K) and wattage — set switches at install
• Dry Location rating only
• Packaged 6 per box

Before You Order

Verify ceiling cutout or grid dimensions and that a Dry Location-rated fixture is appropriate for the intended space.

• Set desired wattage and CCT using the onboard switches before final mounting.
• Ensure your dimming control is compatible with 0–10V control if dimming is required.
