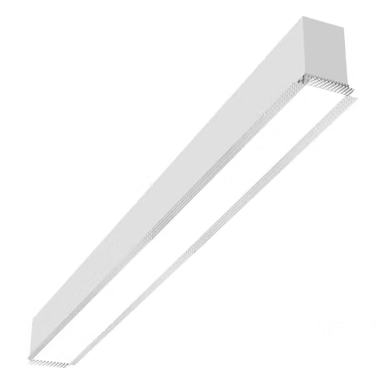

EnVision LED-ALIN2-3FT-3P38-D-5CCT-WH-TML – 3' Architectural Linear Downlight

EnVision's LED-ALIN2-3FT-3P38-D-5CCT-WH-TML downlight supplies up to 3,600 lumens with selectable 30/22.5/14.5w output on universal 120-277V, suited to corridors and common areas with straightforward install and confirmation.

• Selectable power: 30/22.5/14.5w set at install, one SKU covering multiple loads
• Output: up to 3,600 lumens matching the selected wattage
• Field-selectable color: 2700K-5000K (5 CCT) chosen on the fixture, no re-order
• Dimming: 0-10V for smooth level control
• Beam angle: 110° for even coverage
• Color rendering: CRI >80
• Rating: Dry Location
• Finish: White
• Compliance: ETL Listed, 5-year warranty
• Packaged 9 per box

Suited to corridors and common areas, recessed ceiling layouts, and retail and office fit-outs.

Confirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting.

Order the LED-ALIN2-3FT-3P38-D-5CCT-WH-TML to standardize on one flexible fixture across the job.
