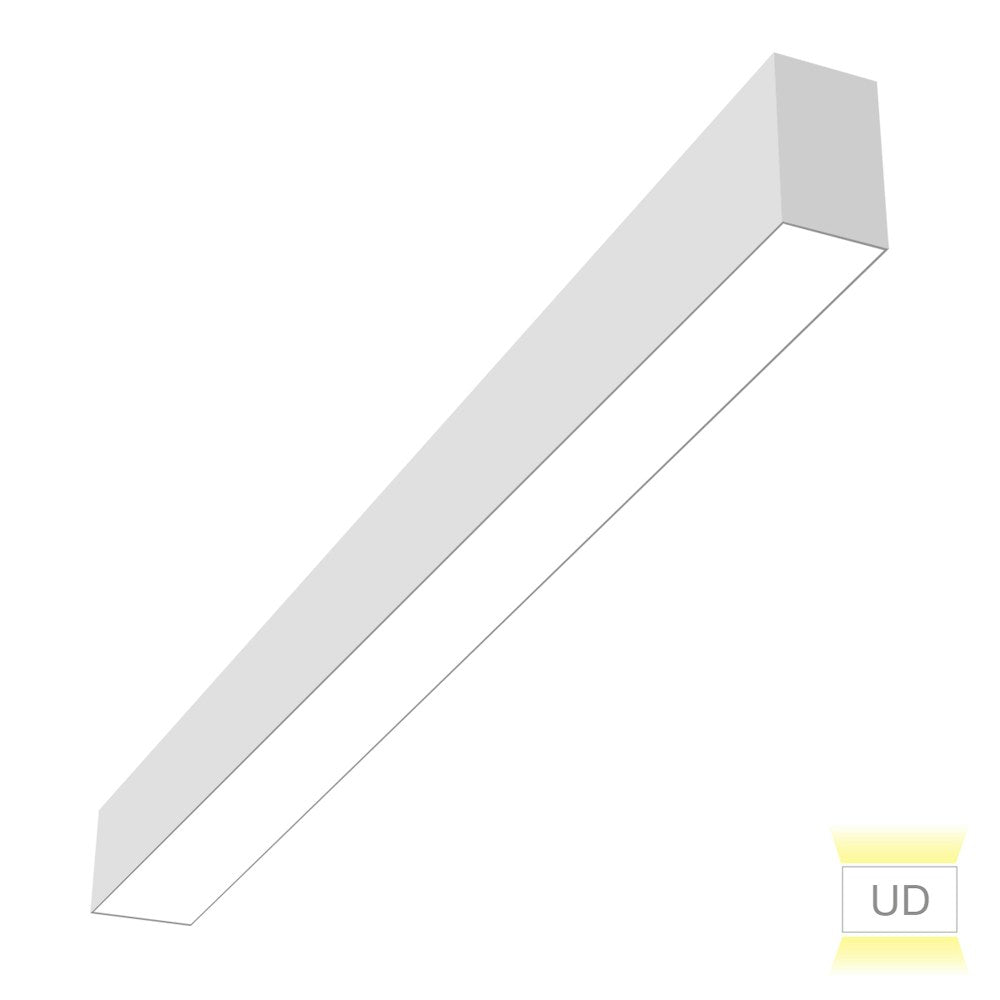

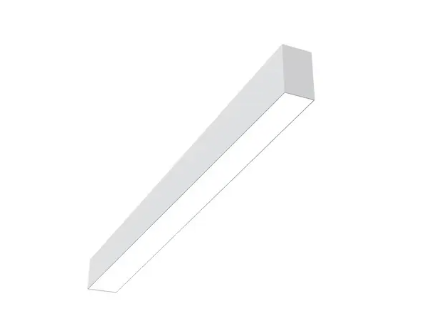

EnVision LED-ALIN2-2FT-3P25-D-5CCT-WH-TML – 2' Architectural Linear Downlight

Product Overview

The EnVision LED-ALIN2-2FT-3P25-D-5CCT-WH-TML is a 2-foot recessed architectural linear downlight with field-selectable wattage and color temperature, allowing one SKU to cover multiple output and CCT needs.

This ETL-listed fixture operates on 120–277V, supports 0–10V dimming, delivers up to 2,400 lumens at the highest setting, has a white finish, and is rated for dry locations.

Key Features

• Field-selectable wattage: 20W / 15W / 10W
• Field-selectable color temperature: 5 CCT (2700K, 3000K, 3500K, 4000K, 5000K)
• Lumen outputs: 2,400 / 1,800 / 1,200 (corresponding to wattage selection)
• Input voltage: 120–277V
• Dimming: 0–10V
• Beam angle: 110°
• CRI: > 80
• ETL listed; 5-year warranty
• White finish; packaged 9 per box

What this fixture does

A recessed 2-foot architectural linear downlight with installer-selectable wattage and CCT settings so one part number can serve multiple output and color-temperature requirements.

Output, lumen levels and beam

Light level is determined by the selected wattage. The manufacturer lists three wattage settings with matching lumen outputs and a wide beam for even coverage.

• Wattage: 20W / 15W / 10W
• Lumen outputs: 2,400 lm (20W) / 1,800 lm (15W) / 1,200 lm (10W)
• Beam angle: 110°
• CRI: > 80
• Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K

Electrical requirements and dimming

The fixture accepts a 120–277V supply and is compatible with 0–10V control systems for dimming.

• Input voltage: 120–277V
• Dimming control: 0–10V

Installation notes and applications

Intended for recessed installation in dry interior ceilings. Common uses include hospitality and residential ceilings, corridors and common areas as noted by the product description.

• Verify ceiling cutout or grid size matches the housing before ordering
• Set wattage and CCT switches at install prior to final mounting

Certifications, finish and environment

Fixture is ETL listed, comes with a 5-year warranty, has a white finish, and is rated for dry locations.

• Certification: ETL listed
• Warranty: 5 years
• Finish: White
• Location rating: Dry location

Before You Order

Verify the ceiling cutout or grid size matches the fixture housing and that a dry-location rated product is appropriate.

• Confirm ceiling cutout or housing compatibility
• Decide wattage (20/15/10W) and CCT (2700K–5000K) on the fixture before final mounting
• Ensure the site has 120–277V supply and compatible 0–10V dimming if dimming is required

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-2FT-3P25-D-5CCT-WH-TML – 2' Architectural Linear Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
