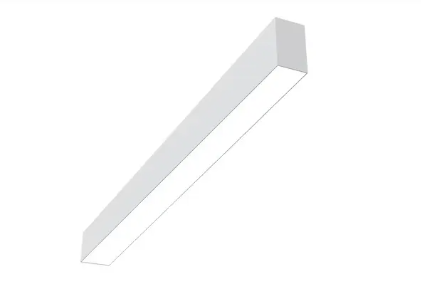

EnVision LED-ALIN2-24X24-L-3P50-UD-5CCT-WH – 4' L-Shape Downlight
EnVision LED-ALIN2-24X24-L-3P50-UD-5CCT-WH – 4' L-Shape Downlight
Regular price
$364.00
Regular price
Sale price
$364.00
SKU:LED-ALIN2-24X24-L-3P50-UD-5CCT-WH
Quantity
Couldn't load pickup availability
Product Overview
Applications
The EnVision LED-ALIN2-24X24-L-3P50-UD-5CCT-WH is a downlight rated for up to 6,000 lumens with selectable 50/38/25w output, operating on 120-277V. A dependable choice for hospitality and residential ceilings where consistent light and clean specs matter.
Key Features- Selectable power: 50/38/25w set at install, one SKU covering multiple loads
- Output: up to 6,000 lumens matching the selected wattage
- Field-selectable color: 2700K-5000K (5 CCT) chosen on the fixture, no re-order
- Dimming: 0-10V for smooth level control
- Beam angle: 110° for even coverage
- Color rendering: CRI >80
- Rating: Dry Location
- Finish: White
- Compliance: ETL Listed, 5-year warranty
- Packaged 4 per box
| Brand | EnVision |
|---|---|
| Wattage | 50/38/25w |
| Lumens | 6,000/4,560/3,000 |
| Color Temperature | 2700K-5000K (5 CCT) |
| Voltage | 120-277V |
| Dimming | 0-10V |
| Beam Angle | 110° |
| CRI | >80 |
| IP Rating | Dry Location |
| Finish | White |
| Certification | ETL/ 5 Years |
| Box Quantity | 4 |
| UPC | LED-ALIN2-24X24-L-3P25-UD-5CCT-WH |
Suited to hospitality and residential ceilings, corridors and common areas, and recessed ceiling layouts.
Compatibility & Installation NotesConfirm the ceiling cutout or grid size matches the housing before ordering. Set the wattage and CCT switches before final mounting.
The LED-ALIN2-24X24-L-3P50-UD-5CCT-WH is a practical pick for installers who want verified specs and fast sourcing.
