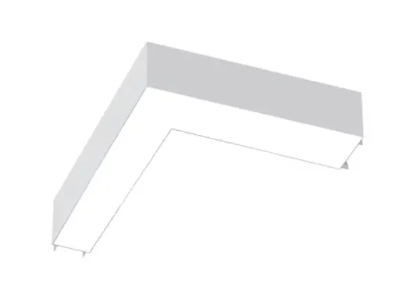

EnVision LED-ALIN2-24X24-L-3P50-D-5CCT-WH – 4' L-Shape Downlight

Product Overview

The EnVision LED-ALIN2-24X24-L-3P50-D-5CCT-WH is a 4' L-shape LED downlight with selectable wattage and color temperature. It operates on 120-277V and is rated for dry locations.

Select the wattage and CCT at the fixture. The downlight also supports 0-10V dimming and has a white finish.

Key Features

• Selectable 20W, 30W, or 40W output, with corresponding outputs of 2,400, 3,600, or 4,800 lumens
• Five selectable CCT settings spanning 2700K to 5000K
• 0-10V dimming and 110° beam angle
• CRI >80; dry-location rating
• ETL listed; 5-year warranty

Selectable wattage and color temperature

This EnVision downlight offers selectable 20W, 30W, and 40W settings. The corresponding lumen outputs are 2,400, 3,600, and 4,800.

Its five selectable CCT settings span 2700K to 5000K. Set the wattage and CCT switches before final mounting.

Dimming and light distribution

The fixture supports 0-10V dimming and has a 110° beam angle. Its color rendering rating is CRI >80.

Applications and installation check

The product is described for retail and office fit-outs, hospitality and residential ceilings, and corridors and common areas. It is rated for dry locations.

Before ordering, confirm that the ceiling cutout or grid size matches the housing.

Before You Order

Confirm that the ceiling cutout or grid size matches the housing.
