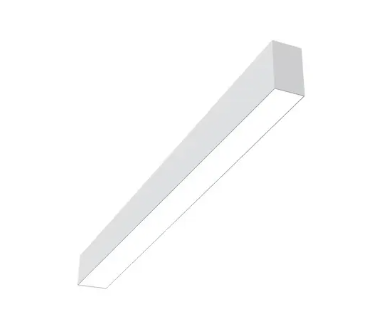

EnVision LED-ALIN2-22X22-X-3P50-UD-5CCT-WH – 2' X-Shape Downlight

Product Overview

The EnVision LED-ALIN2-22X22-X-3P50-UD-5CCT-WH is a 2' X-shape recessed downlight with field-selectable wattage and color temperature to cover multiple specification needs with one SKU.

It accepts 120–277V input, supports 0–10V dimming, is rated for dry locations, and ships in packs of four.

Key Features

• Field-selectable wattage: 50W / 38W / 25W
• Selectable lumen output: 6,000 / 4,560 / 3,000 lumens (per corresponding wattage setting)
• Five CCT options: 2700K, 3000K, 3500K, 4000K, 5000K (set on fixture)
• Universal input voltage: 120–277V
• Dimming: 0–10V control
• 110° beam angle
• Finish: White
• ETL listed; 5-year warranty
• Packaged 4 per box; rated for dry locations

What this fixture does

A recessed 2' X-shape architectural downlight intended to provide general-area illumination in ceilings where a dry-location rated fixture is acceptable. The on-fixture switches allow selection of wattage and CCT at install to reduce SKU variety.

• Single SKU with selectable outputs and CCT to suit different lighting targets
• Broad 110° beam for even area illumination

Performance and output

Lumen output corresponds to the chosen wattage setting. Color temperature is selectable on the fixture across five common CCTs. Color-rendering is specified as greater than 80 CRI.

• Wattage: 50W / 38W / 25W
• Lumen output: 6,000 / 4,560 / 3,000 (matching 50W/38W/25W respectively)
• CCT options: 2700K, 3000K, 3500K, 4000K, 5000K
• CRI: > 80

Electrical and controls

The fixture accepts 120–277V input and supports industry-standard 0–10V dimming control.

• Input voltage: 120–277V
• Dimming interface: 0–10V

Mounting and installation notes

Intended for recessed installation in dry locations. The wattage and CCT switches should be set on the fixture before final mounting.

• Location rating: Dry Location
• Finish: White
• Packaged quantity: 4 per box
• Confirm ceiling cutout or grid compatibility before ordering

Certifications and warranty

The product is listed by ETL and carries a 5-year warranty.

• ETL listed
• 5-year warranty

Before You Order

Verify ceiling cutout or grid compatibility and confirm the model and quantity required.

• Confirm ceiling cutout or grid size matches the housing
• Plan to set wattage and CCT switches on each fixture before final installation

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-22X22-X-3P50-UD-5CCT-WH – 2' X-Shape Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
