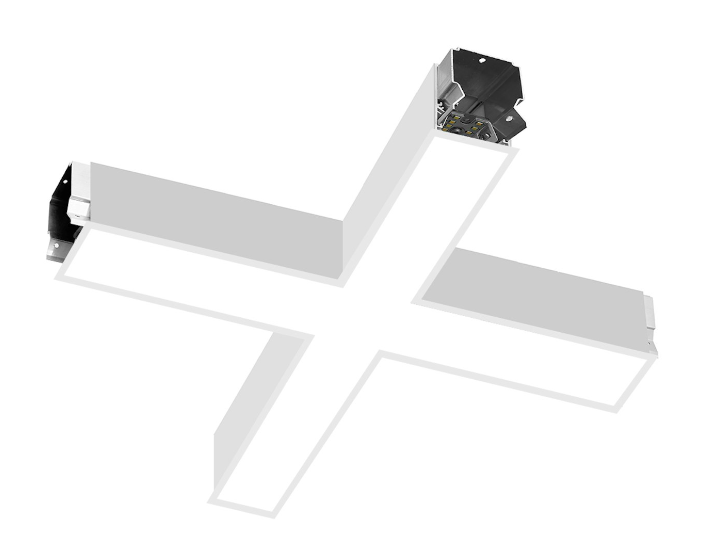

EnVision LED-ALIN2-22X22-X-3P50-D-5CCT-WH-RTK – 2' X-Shape Downlight

Product Overview

The EnVision LED-ALIN2-22X22-X-3P50-D-5CCT-WH-RTK is a 2' X-shape architectural downlight intended for interior ceilings. One SKU offers field-selectable wattage and color temperature to reduce ordering variations.

The fixture accepts 120–277V, supports 0–10V dimming, is ETL listed for dry locations, ships in a white finish, and is packaged four units per box.

Key Features

• Field-selectable wattage: 40W / 30W / 20W (set at install)
• Corresponding lumen outputs: 4,800 / 3,600 / 2,400
• Field-selectable 5 CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Beam angle: 110°
• Dimming: 0–10V
• Input voltage: 120–277V
• Color rendering: CRI > 80
• ETL listed; 5-year warranty; Dry Location rating; White finish
• Packaged quantity: 4 per box

What this fixture does

The LED-ALIN2-22X22 is a 2' X-shape architectural downlight designed for interior ceiling installations where broad area illumination is required.

Output and optical performance

Lumen output and color temperature are selectable on the fixture to match application needs without ordering different SKUs.

• Selectable wattages: 40W, 30W, 20W
• Lumen outputs: 4,800 lm (40W), 3,600 lm (30W), 2,400 lm (20W)
• Beam angle: 110°
• Color rendering: CRI > 80

Dimming and field configuration

The fixture provides field-selectable CCT and wattage settings and supports 0–10V dimming.

• Selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Dimming interface: 0–10V

Voltage and electrical compatibility

The downlight accepts a wide input voltage range suitable for common commercial supplies.

• Input voltage: 120–277V

Mounting and pre-installation notes

Confirm the fixture dimensions and ceiling cutout or grid size match the chosen housing before ordering. Set the desired wattage and CCT switches during installation prior to final mounting.

• Dry Location rating — intended for indoor ceiling use
• Finish: White

Certifications, warranty and packaging

The product is ETL listed, carries a 5-year warranty, and is packaged four units per box.

• Certification: ETL listed
• Warranty: 5 years
• Box quantity: 4
• Model/SKU: LED-ALIN2-22X22-X-3P50-D-5CCT-WH-RTK

Before You Order

Confirm the ceiling cutout or grid size matches the fixture housing before ordering; set wattage and CCT switches during installation.

• Verify ceiling type and cutout dimensions match the 2' X-shape downlight housing.
• Plan which wattage (40/30/20W) and CCT (2700K–5000K) will be set before final mounting.
• Confirm 0–10V dimming compatibility with your control system.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-22X22-X-3P50-D-5CCT-WH-RTK – 2' X-Shape Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
