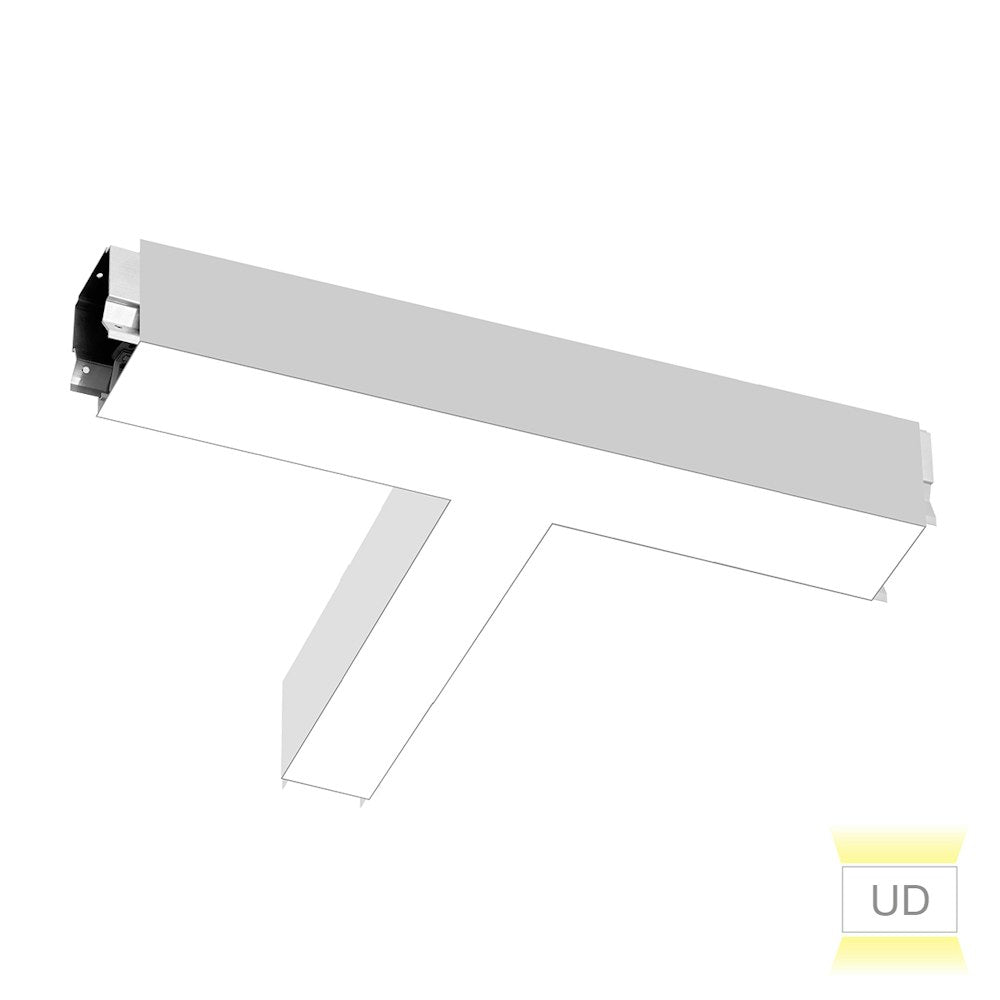

EnVision LED-ALIN2-22X10-T-3P36-UD-5CCT-WH – 2' T-Shape Downlight

Product Overview

The EnVision LED-ALIN2-22X10-T-3P36-UD-5CCT-WH is a 2' T-shape LED downlight with selectable wattage and color temperature. Its three output settings provide 2,040, 3,000 or 4,320 lumens, and its five CCT settings range from 2700K to 5000K.

This white-finish fixture operates on 120-277V, supports 0-10V dimming and is rated for dry locations. It is ETL listed.

Key Features

• Selectable output: 17W, 25W or 36W
• Selectable color temperature: five settings from 2700K to 5000K
• 0-10V dimming and 110° beam angle
• White finish; packaged four fixtures per box

Choose the Output and Color Temperature

This downlight has three selectable wattage and lumen-output settings and five selectable color temperatures. Set the wattage and CCT switches on the fixture before final mounting.

• 17W: 2,040 lumens
• 25W: 3,000 lumens
• 36W: 4,320 lumens
• CCT range: 2700K–5000K, five settings

Beam Angle and Dimming

The fixture has a 110° beam angle and supports 0-10V dimming. Its listed color rendering is CRI greater than 80.

Applications and Installation Checks

Applications include corridors, common areas, recessed ceiling layouts, and retail and office fit-outs. Confirm that the ceiling cutout or grid size matches the housing before ordering.

• The fixture is rated for dry locations.

Before You Order

Confirm the ceiling cutout or grid size matches the housing.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-22X10-T-3P36-UD-5CCT-WH – 2' T-Shape Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
