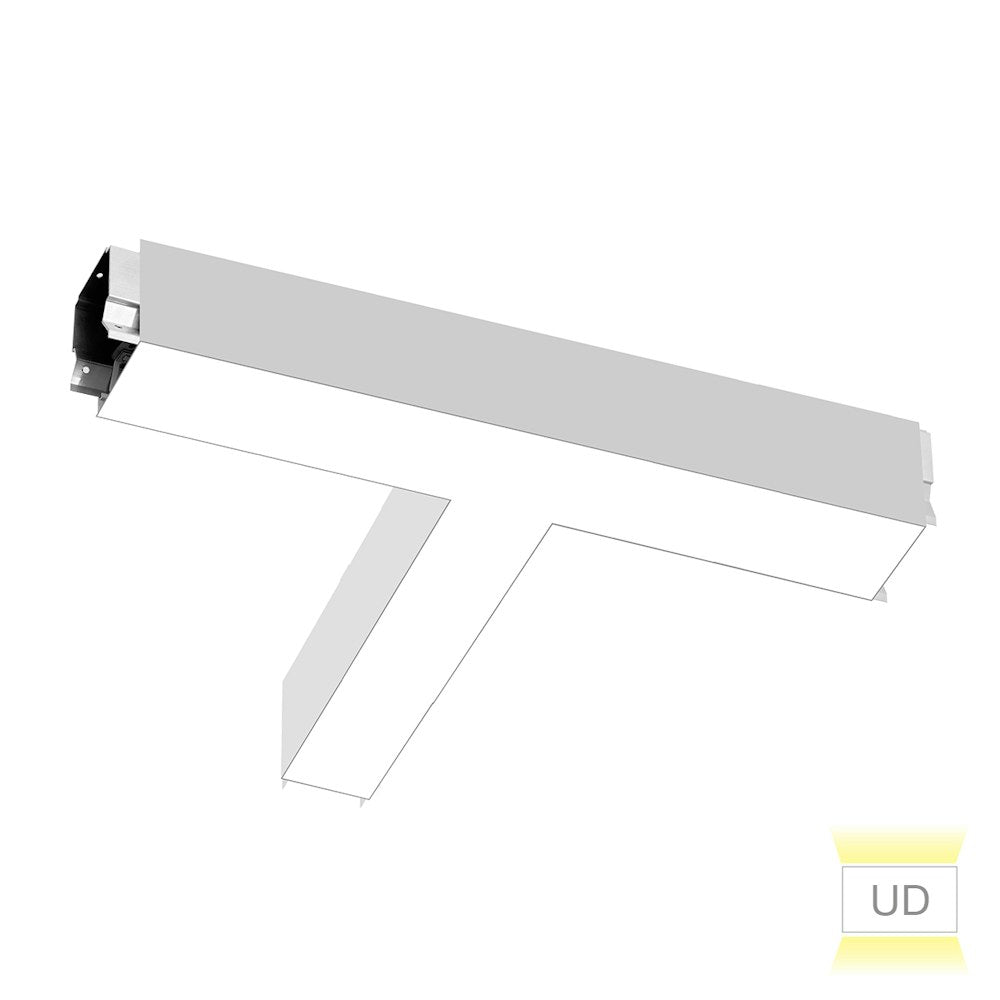

EnVision LED-ALIN2-22X10-T-3P36-D-5CCT-WH-TML – 2' T-Shape Downlight

Product Overview

The EnVision LED-ALIN2-22X10-T-3P36-D-5CCT-WH-TML is a 2' T-shape recessed downlight intended for retail and office fit-outs. One field-configurable SKU supports three wattage settings and five color temperatures to simplify specification.

Field-selectable power (29/20/13.5W) and five CCT options (2700K–5000K) are set at install; the fixture provides corresponding lumen outputs, supports 0–10V dimming, and is ETL listed for dry locations.

Key Features

• Field-selectable wattage: 29W, 20W, or 13.5W (set during installation)
• Corresponding lumen outputs: 3,480 / 2,400 / 1,620 lm
• Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K (5-step)
• Input voltage: 120–277V
• Dimming: 0–10V
• Beam angle: 110°
• Color rendering: CRI > 80
• Finish: White; Rating: Dry Location
• Certification: ETL listed; 5-year warranty
• Packaged four fixtures per box

What this fixture does

This EnVision 2' T-shape downlight provides configurable lumen output and color temperature from a single SKU to reduce ordering complexity on commercial projects.

• One model supports three power/output settings selectable at the fixture (29/20/13.5W).
• Five field-selectable CCT choices (2700K–5000K) allow matching ambient color without exchanging fixtures.

Output and optical performance

Select the wattage to obtain the corresponding lumen output for the space; beam and color characteristics are fixed as specified.

• Lumen outputs: 3,480 lm (29W), 2,400 lm (20W), 1,620 lm (13.5W).
• Beam angle: 110°.
• Color rendering: CRI > 80.

Electrical and dimming requirements

The fixture accepts a 120–277V supply and is compatible with 0–10V dimming systems.

• Input voltage: 120–277V.
• Dimming: 0–10V (requires a compatible 0–10V control system).
• Wattage selection is performed on the fixture prior to final mounting; lumens correspond to the selected wattage.

Installation and configuration notes

Set the desired wattage and color temperature using the switches on the fixture before final installation. Confirm ceiling cutout or grid compatibility with the housing before ordering.

• Field-selectable switches control wattage and CCT.
• Designed and rated for dry-location ceiling installations.
• Packaged four per box; verify quantities needed for your project.

Ratings, finish, and warranty

The downlight is ETL listed for dry locations, finished in white, and covered by a 5-year warranty for manufacturing defects under normal use.

• Finish: White.
• Environment: Dry location rating (not for wet or damp locations).
• Certification: ETL listed; 5-year warranty.

Before You Order

Verify ceiling cutout or grid compatibility with the housing and set the desired wattage and CCT on the fixture before final mounting.

• Confirm the correct model and quantities for your project.
• Ensure the dry-location rating is appropriate for the installation area.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-22X10-T-3P36-D-5CCT-WH-TML – 2' T-Shape Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
