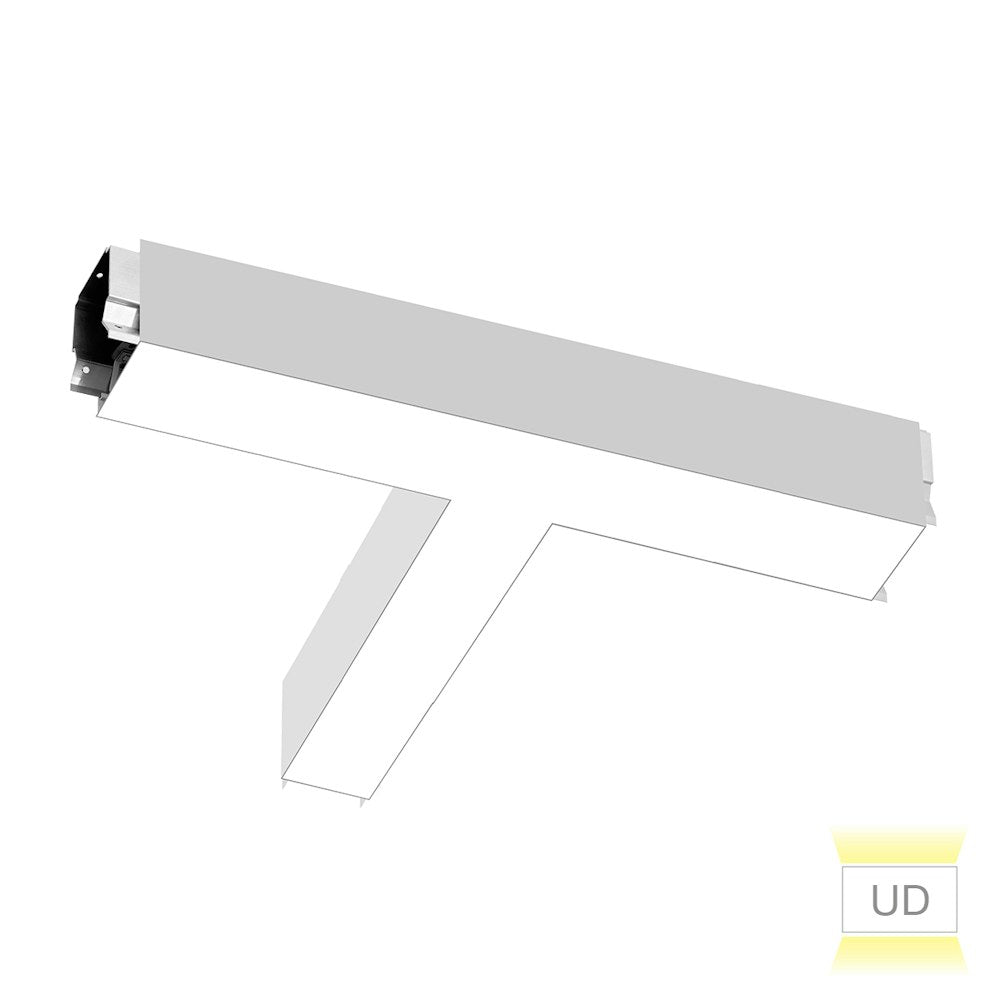

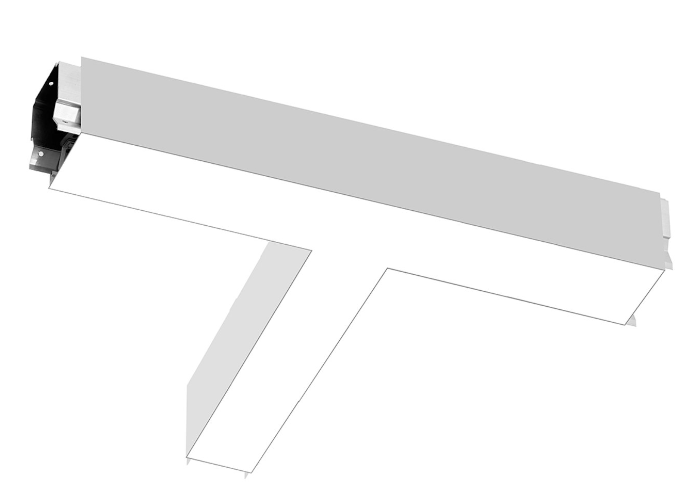

EnVision LED-ALIN2-22X10-T-3P36-D-5CCT-WH-RTK – 2' T-Shape Downlight

Product Overview

The EnVision LED-ALIN2-22X10-T-3P36-D-5CCT-WH-RTK is a white, recessed 2' T-shape LED downlight for ceiling layouts. It operates on 120-277V and offers selectable wattage and color temperature, plus 0-10V dimming.

Choose from three output settings—29W, 20W or 13.5W—with corresponding listed lumen outputs of 3,480, 2,400 and 1,620. Five selectable CCT settings span 2700K to 5000K.

Key Features

• Selectable 29W, 20W or 13.5W operation
• Corresponding lumen outputs of 3,480, 2,400 and 1,620
• Five selectable CCT settings spanning 2700K to 5000K
• 0-10V dimming and 110° beam angle
• 120-277V, CRI greater than 80 and dry-location rating
• White finish; ETL listed; 5-year warranty
• Packaged four per box

Selectable Wattage and Color Temperature

This EnVision downlight offers three selectable power levels: 29W, 20W and 13.5W. The corresponding listed outputs are 3,480, 2,400 and 1,620 lumens.

Its five selectable CCT settings span 2700K to 5000K. Set the wattage and CCT switches before final mounting.

Dimming, Beam Angle and Color Rendering

The fixture uses 0-10V dimming and has a listed 110° beam angle. Its color rendering rating is CRI greater than 80.

Recessed Ceiling Use and Setup

The 2' T-shape downlight is intended for recessed ceiling layouts. Listed applications include retail and office fit-outs, as well as hospitality and residential ceilings.

Confirm that the ceiling cutout or grid size matches the housing before ordering. The fixture is rated for dry locations.

Before You Order

Confirm that the ceiling cutout or grid size matches the housing before ordering.
