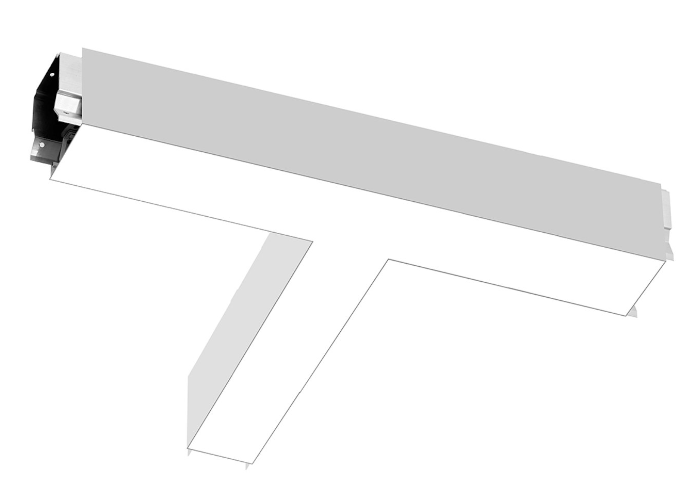

EnVision LED-ALIN2-22X10-T-3P36-D-5CCT-WH – 2' T-Shape Downlight

Product Overview

The EnVision LED-ALIN2-22X10-T-3P36-D-5CCT-WH is a white 2' T-shape LED downlight rated for dry locations and 120-277V operation.

It offers three selectable wattage settings with corresponding outputs from 1,620 to 3,480 lumens, five CCT settings from 2700K to 5000K, and 0-10V dimming.

Key Features

• Selectable wattage: 13.5W, 20W or 29W, with corresponding output of 1,620, 2,400 or 3,480 lumens
• Five selectable CCT settings from 2700K to 5000K
• 120-277V operation and 0-10V dimming
• 110° beam angle and CRI >80
• White finish; ETL listed; 5-year warranty
• Packaged four per box

Selectable Wattage and Color Temperature

This EnVision downlight provides three selectable wattage settings: 13.5W, 20W and 29W. Their corresponding lumen outputs are 1,620, 2,400 and 3,480 lumens, respectively.

Five selectable CCT settings span 2700K to 5000K.

Voltage and Dimming

The fixture operates on 120-277V and uses 0-10V dimming. Its beam angle is 110°, and its CRI is greater than 80.

Listed Ceiling Applications

Stated applications include hospitality and residential ceilings, corridors, common areas and recessed ceiling layouts.

Ratings and Package Details

The downlight is rated for dry locations and is ETL listed. It has a 5-year warranty and is packaged four per box.

Before You Order

Confirm the ceiling cutout or grid size matches the housing before ordering; set the wattage and CCT switches before final mounting.
