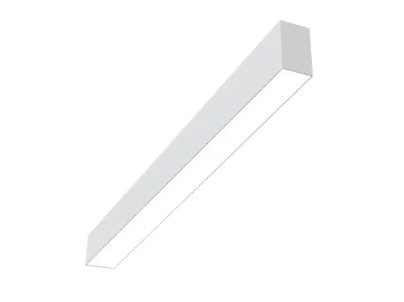

EnVision LED-ALIN2-1FT-3P12-D-5CCT-WH-TML – 1' Architectural Linear Downlight

Product Overview

The EnVision LED-ALIN2-1FT-3P12-D-5CCT-WH-TML is a 1-foot architectural linear downlight with field-selectable wattage and color temperature to simplify specification and stocking.

Selectable power settings (9.5W, 7W, 5W) provide corresponding lumen outputs (1,200 lm, 840 lm, 600 lm). The fixture supports 120–277V input, 0–10V dimming, a 110° beam angle, and is rated for dry locations. Finish: white. Certification: ETL listed; 5-year warranty.

Key Features

• Field-selectable wattage: 9.5W, 7W, or 5W
• Corresponding lumen outputs: 1,200 lm / 840 lm / 600 lm
• Field-selectable CCT: five options spanning 2700K–5000K
• 110° beam angle
• 0–10V dimming
• 120–277V input voltage range
• CRI >80
• Dry Location rated, white finish
• ETL listed; 5-year warranty
• Packaged 9 per box

What this luminaire does

A one-foot architectural linear downlight intended to provide general area illumination in ceilings where a white finish and wide beam are desired.

• 1' linear downlight
• White finish
• Dry Location rating

Performance and lumen output

Three field-selectable wattage settings allow the installer to choose output on site without ordering different SKUs.

• Wattage options: 9.5W, 7W, 5W
• Lumen outputs: 1,200 lm / 840 lm / 600 lm (matching selected wattage)
• Beam angle: 110°
• Color rendering: CRI >80

Dimming and field-selectable options

The fixture supports 0–10V analog dimming. Color temperature and wattage are set at the fixture in the field.

• 0–10V dimming
• Field-selectable CCT: five options across 2700K–5000K
• Set wattage and CCT switches before final mounting

Voltage and electrical requirements

Accepts a wide input voltage range suitable for common commercial power feeds.

• Input voltage: 120–277V
• Confirm building power and dimming control wiring compatibility prior to installation

Ordering and installation notes

Verify ceiling cutout or grid opening matches the fixture before ordering. Fixtures are packaged nine per box; confirm required quantities for the project.

• Dry Location use only
• Packaged 9 per box
• Set wattage and CCT at the fixture during installation

Before You Order

Verify ceiling cutout or grid size and confirm the project requires a dry-location rated fixture. Confirm model number and quantity needed.

• Verify ceiling cutout or housing compatibility
• Confirm required lumen output and CCT (wattage and CCT are set on the fixture)
• Confirm pack quantity (9 per box)

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-1FT-3P12-D-5CCT-WH-TML – 1' Architectural Linear Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
