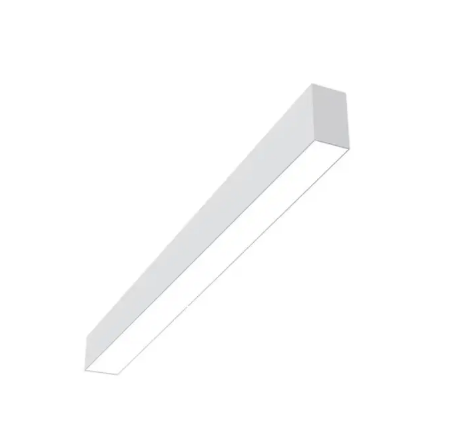

EnVision LED-ALIN2-1FT-3P12-D-5CCT-WH – 1' Architectural Linear Downlight

Product Overview

The EnVision LED-ALIN2-1FT-3P12-D-5CCT-WH is a 1-foot recessed architectural linear downlight with field-selectable wattage (9.5W / 7W / 5W) and five selectable color temperatures (2700K–5000K).

At the highest setting the fixture delivers up to 1,200 lumens, operates on 120–277V, supports 0–10V dimming, and is ETL listed for dry-location use.

Key Features

• Field-selectable power: 9.5W / 7W / 5W
• Lumen output: 1,200 / 840 / 600 (corresponding to selectable wattages)
• Field-selectable CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• Wide 110° beam angle
• Dimming: 0–10V
• Input voltage: 120–277V
• Color rendering: CRI >80
• White finish; rated for dry locations
• Certifications: ETL listed; 5-year warranty
• Pack quantity: 9 per box; UPC 810143711554

What this fixture does

A 1-foot recessed architectural linear downlight supplied as a single configurable SKU. Wattage and color temperature are selected at the fixture during installation so one part number covers multiple output and CCT combinations.

• Single SKU configurable to three power settings and five CCT settings.
• White finish intended for ceiling integration in dry locations.

Light output and color options

Lumens vary with the selected wattage; the installer selects the appropriate output and CCT on site using the fixture's switches.

Use the higher lumen setting for brighter general illumination and lower settings for reduced output or energy savings, per project needs.

• Wattage options: 9.5W, 7W, 5W.
• Lumen outputs: 1,200 (9.5W) / 840 (7W) / 600 (5W).
• CCT options: 2700K, 3000K, 3500K, 4000K, 5000K.
• Beam angle: 110°.
• CRI: >80.

Voltage and dimming

Designed for common commercial voltage ranges and compatible with standard 0–10V control systems.

Confirm control wiring and dimmer compatibility with 0–10V systems during installation.

• Input voltage: 120–277V.
• Dimming: 0–10V control.

Mounting and installation notes

Intended for recessed ceiling installations in dry locations. Set the desired wattage and CCT on the fixture before completing the final mounting.

Verify the fixture will fit the intended ceiling opening or grid prior to installation.

• Dry-location rating only.
• Configure wattage and CCT switches on site before final mounting.

Technical specifications

Reference key technical data for specification and ordering.

• Brand: EnVision
• Model / SKU: LED-ALIN2-1FT-3P12-D-5CCT-WH
• Finish: White
• Beam angle: 110°
• Certification: ETL listed; 5-year warranty
• Pack quantity: 9 per box
• UPC: 810143711554

Before You Order

Verify ceiling cutout or grid size and that a dry-location rated fixture is appropriate for your intended space.

• Set the desired wattage and CCT on the fixture during installation before final mounting.
• Confirm compatibility with 0–10V control systems if dimming integration is required.
