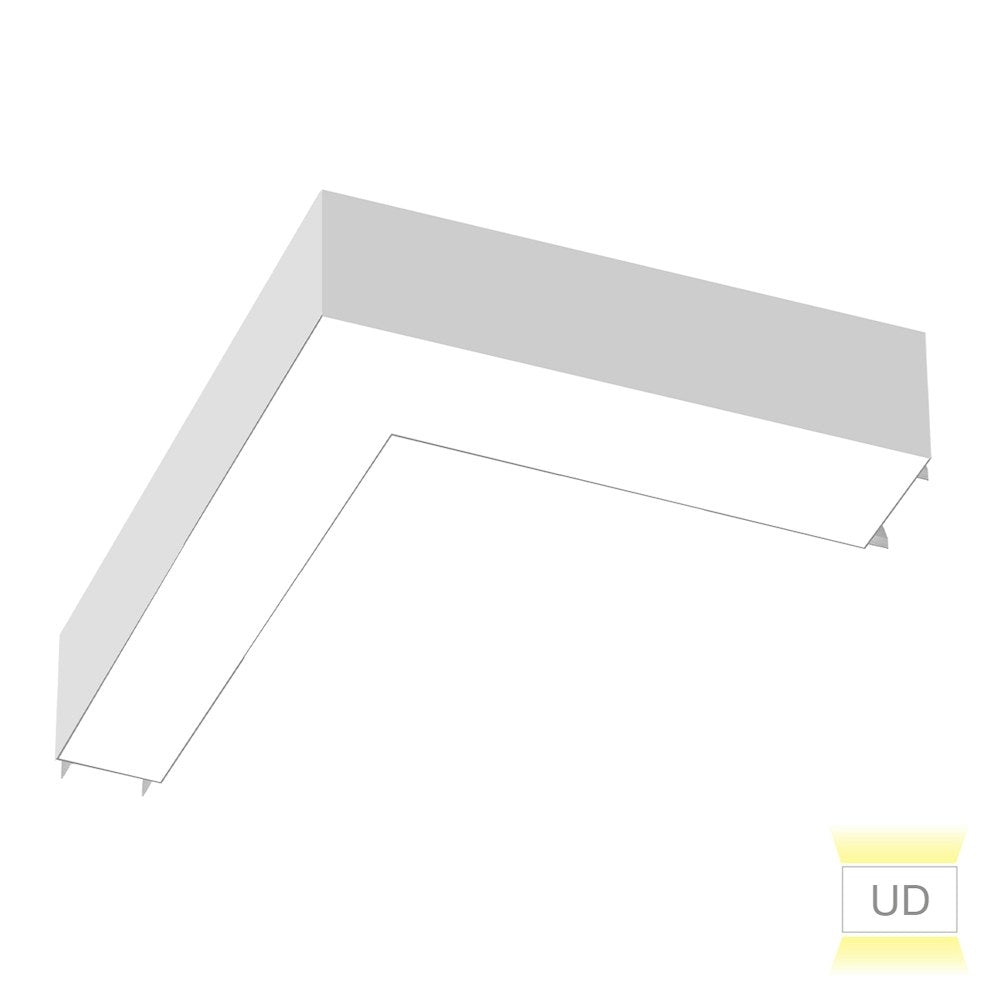

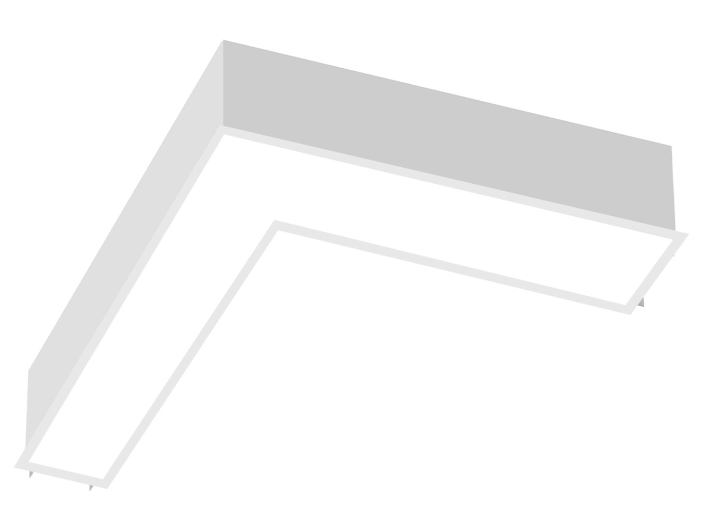

EnVision LED-ALIN2-12X12-L-3P25-D-5CCT-WH-RTK – 12x12" L-Shape Downlight

Product Overview

The EnVision LED-ALIN2-12X12-L-3P25-D-5CCT-WH-RTK is a 12x12-inch L-shape LED downlight with selectable wattage and color temperature. It operates on 120–277V and has a white finish.

Select 10W, 15W or 20W output, corresponding to 1,200, 1,800 or 2,400 lumens. The fixture also offers five selectable color temperatures from 2700K to 5000K and 0-10V dimming.

Key Features

• Selectable output: 10W, 15W or 20W, with corresponding outputs of 1,200, 1,800 or 2,400 lumens
• Five selectable color temperatures spanning 2700K–5000K
• 0-10V dimming and 110° beam angle
• 120–277V input; CRI greater than 80
• Dry-location rating, white finish and ETL listing
• Four units per box; five-year warranty

Selectable Wattage and Color Temperature

This downlight provides three selectable wattage settings: 10W, 15W and 20W. Their corresponding outputs are 1,200, 1,800 and 2,400 lumens, respectively. Five selectable CCT settings span 2700K to 5000K.

Dimming and Electrical Characteristics

The fixture is rated for 120–277V input and uses 0-10V dimming. Its beam angle is 110°, and its color rendering rating is CRI greater than 80.

Applications and Location Rating

Listed applications include retail and office fit-outs, hospitality and residential ceilings, and corridors and common areas. The fixture is rated for dry locations.

Before You Order

Confirm that the ceiling cutout or grid size matches the housing before ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-12X12-L-3P25-D-5CCT-WH-RTK – 12x12" L-Shape Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
