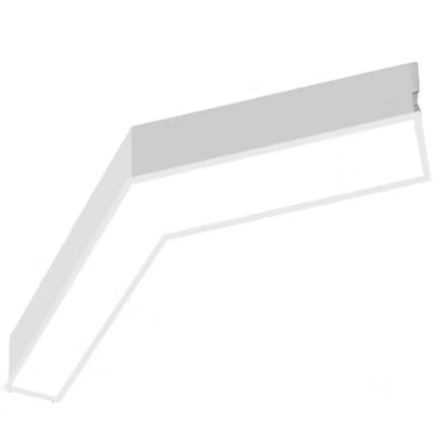

EnVision LED-ALIN2-12X12-120L-3P25-D-5CCT-WH-RTK – 12x12" 120° L-Shape Downlight

Product Overview

The EnVision LED-ALIN2-12X12-120L-3P25-D-5CCT-WH-RTK is a recessed L-shape downlight offering installer-set selectable wattage and color temperature, 0–10V dimming, and a wide 110° beam.

One SKU provides selectable outputs (20/15/10W corresponding to 2,400 / 1,800 / 1,200 lumens) and five field-selectable CCT settings (2700K–5000K).

Key Features

• Selectable power: 20 / 15 / 10 W (set at installation)
• Selectable lumen outputs: 2,400 / 1,800 / 1,200 lm
• Field-selectable 5 CCT: 2700K, 3000K, 3500K, 4000K, 5000K
• 110° beam angle
• 0–10V dimming compatibility
• 120–277V input range
• CRI > 80
• ETL listed; 5-year warranty
• White finish; packaged 4 per box

What this fixture does

A recessed L-shape downlight intended to provide broad, even illumination in ceilings. The product is presented for use in hospitality and residential ceilings and other recessed ceiling layouts.

• Recessed L-shape downlight
• White finish

Output and light quality

Installer-selectable outputs and CCT allow choosing lumen level and color temperature at install. The product is specified with CRI greater than 80.

• Wattage settings: 20W / 15W / 10W
• Lumen outputs: 2,400 lm / 1,800 lm / 1,200 lm (corresponding to wattage)
• Beam angle: 110°
• Color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K (field-selectable)

Voltage and dimming

The fixture accepts 120–277V input and supports 0–10V dimming control.

• Input voltage: 120–277V
• Dimming: 0–10V

Mounting and configuration

Wattage and CCT are set via selection switches on the fixture prior to final mounting. Confirm the ceiling cutout or housing dimensions match the fixture before ordering.

• Set wattage and CCT before final mounting
• Verify ceiling cutout or housing compatibility prior to installation

Recommended applications

Suggested for hospitality and residential ceilings, corridors, and common areas where selectable output and CCT are beneficial for stocking and specification.

• Hospitality guest rooms, lobbies, corridors
• Residential recessed ceiling installations
• Common areas

Before You Order

Confirm the model number and quantity. Verify the ceiling cutout or housing dimensions and that the project supply supports 120–277V and any required 0–10V control.

• Set wattage and CCT on the fixture before final mounting
• Confirm ceiling cutout or housing compatibility
• Confirm 0–10V control compatibility if dimming is needed

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-12X12-120L-3P25-D-5CCT-WH-RTK – 12x12" 120° L-Shape Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
