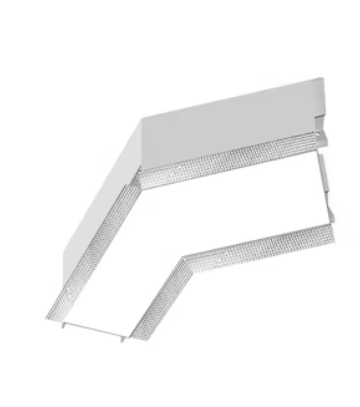

EnVision LED-ALIN2-120L-D-5CCT-WH-TML – 120° L Connector Downlight

Product Overview

The EnVision LED-ALIN2-120L-D-5CCT-WH-TML is a white recessed LED downlight with a 120° L connector configuration. It operates on 120-277V and offers selectable wattage and color temperature.

Choose from three wattage settings with corresponding outputs of 420, 600 or 840 lumens. The fixture is rated for dry locations and is ETL listed.

Key Features

• Selectable wattage: 3.5W, 5W or 7W
• Corresponding output: 420, 600 or 840 lumens
• Five selectable CCT settings spanning 2700K–5000K
• 0-10V dimming and 120-277V operation
• 110° beam angle, CRI greater than 80 and white finish
• Dry-location rating, ETL listing and 5-year warranty

Selectable Wattage, Light Output and CCT

This EnVision downlight has three selectable wattage and lumen-output combinations: 3.5W with 420 lumens, 5W with 600 lumens, or 7W with 840 lumens. Its five selectable CCT settings span 2700K–5000K.

Voltage and Dimming

The fixture operates on 120-277V and supports 0-10V dimming. It has a 110° beam angle and a CRI greater than 80.

Downlight Configuration and Rating

The LED-ALIN2-120L-D-5CCT-WH-TML is a white recessed downlight with a 120° L connector configuration. It is rated for dry locations and is ETL listed. It is described for recessed ceiling layouts, including retail, office, hospitality and residential ceilings.

• Set the wattage and CCT switches before final mounting.
• Packaged 20 units per box.

Before You Order

Confirm that the ceiling cutout or grid size matches the housing.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-120L-D-5CCT-WH-TML – 120° L Connector Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
