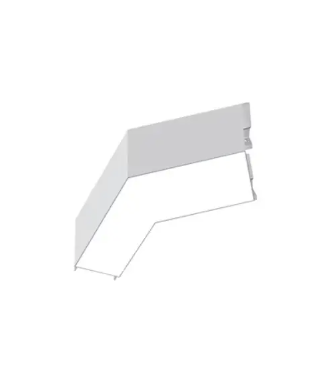

EnVision LED-ALIN2-120L-D-5CCT-WH – 120° L Connector Downlight

Product Overview

The EnVision LED-ALIN2-120L-D-5CCT-WH is a white LED downlight with selectable wattage and color temperature. It operates on 120-277V and supports 0-10V dimming.

It is suited to corridors, common areas, recessed ceiling layouts, and retail or office fit-outs. The listed beam angle is 110°.

Key Features

• Selectable power: 7W, 5W, or 3.5W, with corresponding outputs of 840, 600, or 420 lumens.
• Five selectable CCT settings across 2700K–5000K.
• 0-10V dimming and 120-277V operation.
• CRI greater than 80; dry-location rating; white finish.
• ETL listed with a 5-year warranty.

Selectable Wattage and Color Temperature

The LED-ALIN2-120L-D-5CCT-WH offers three selectable wattage and lumen-output combinations: 7W at 840 lumens, 5W at 600 lumens, or 3.5W at 420 lumens.

Its five CCT settings span 2700K–5000K. Select the wattage and CCT at the fixture before final mounting.

Voltage and Dimming

This downlight operates on 120-277V and uses 0-10V dimming. Its listed beam angle is 110°, and its color rendering rating is CRI greater than 80.

Applications and Installation Checks

The product is suited to corridors and common areas, recessed ceiling layouts, and retail or office fit-outs. It has a dry-location rating and a white finish.

Confirm that the ceiling cutout or grid size matches the housing. Set the wattage and CCT switches before final mounting.

Before You Order

Confirm that the ceiling cutout or grid size matches the housing.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision LED-ALIN2-120L-D-5CCT-WH – 120° L Connector Downlight. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
