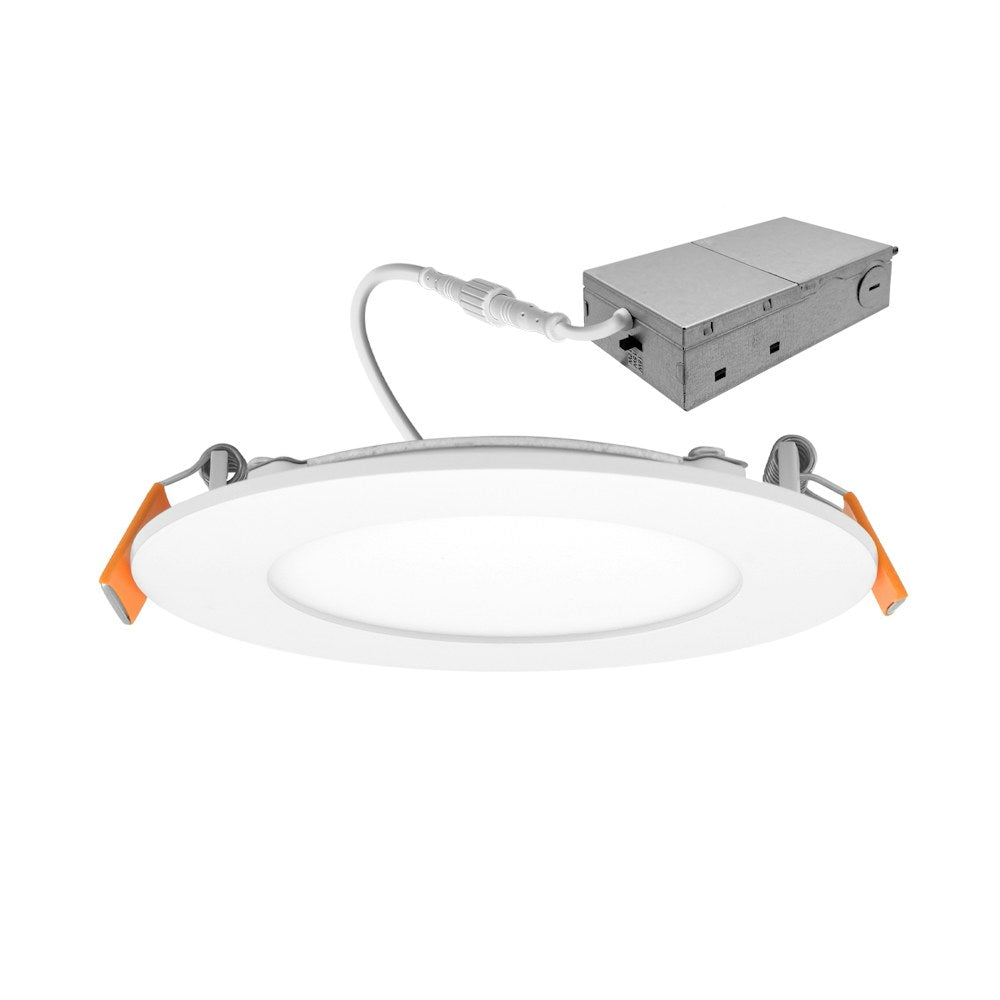

EnVision ECV-WFR-4-9W-5CCT – 4" Round Slim Panel Wafer Downlight

Product Overview

The EnVision ECV-WFR-4-9W-5CCT is a 4" round slim wafer LED downlight designed for shallow ceilings and canless installations. It produces 720 lumens at 9W and offers five selectable color temperatures (2700K, 3000K, 3500K, 4000K, 5000K).

The fixture uses edge‑lit technology with a frosted acrylic lens for wide, even distribution (110° beam), and includes a metal housing, pre‑wired junction box, and spring/tension clip mounting for remodel and canless applications.

Key Features

• 9W power consumption; 720 lumens
• 5‑CCT selectable: 2700K / 3000K / 3500K / 4000K / 5000K
• High color quality: CRI > 90; R9 > 50
• 110° beam angle with edge‑lit, frosted acrylic lens
• 120V Triac dimmable; flicker‑free driver
• Built‑in 2.5 kV surge protection
• Shallow installation: requires 1.5" plenum depth; tension/spring clips for 1/2"–1.5" ceiling thickness (no recessed can required for remodels)
• Includes standard white round trim; metal housing for heat dissipation
• Listings: ETL (US/CA), ENERGY STAR, CA Title 24 JA8; IC rated, ASTM‑E283 air‑tight; 3‑year limited warranty

What this fixture does

The ECV-WFR-4-9W-5CCT is a 4" wafer-style LED downlight that delivers 720 lumens from 9 watts. Edge‑lit technology and a frosted acrylic lens provide even illumination with reduced glare over a 110° beam.

• Output: 9W / 720 lm
• Beam: 110° with even edge‑lit distribution
• Color options: 5‑CCT selectable (2700K, 3000K, 3500K, 4000K, 5000K)

Recommended applications

Manufacturer guidance lists this series for general recessed lighting in residential, multifamily, office, education, healthcare, retail and hospitality settings, and for canless remodel situations where a shallow plenum is present.

• General recessed lighting
• Residential & multifamily
• Office and meeting rooms
• Education, healthcare, retail, hospitality

Electrical requirements and dimming

The fixture is intended for 120V supply and uses a built‑in driver that is Triac dimmable and described as flicker‑free. It includes a 2.5 kV surge protector. The manufacturer provides a tested dimmer list; other dimmers may be compatible but are not tested.

• Input voltage: 120V
• Dimming: Triac (ELV listed by manufacturer as compatible option) — verify with tested dimmer list
• Surge protection: Built‑in 2.5 kV

Mounting and installation details

This canless wafer is designed for remodel and new construction with optional plates. It requires 1.5" of plenum depth and mounts with spring/tension clips into 1/2" to 1.5" ceiling thickness. The product includes a pre‑wired junction box and can be removed from below the ceiling for service.

• Required plenum depth: 1.5"
• Cutout dimension (4" model): 4.33"
• Mounting: spring/tension clips for 1/2"–1.5" ceilings; no recessed can needed for remodels
• Cannot be installed inside a standard recessed can (manufacturer note)

Dimensions and construction

The fixture includes a white round trim and a metal housing to aid heat dissipation. Edge‑lit construction and a frosted acrylic lens create a slim-profile appearance suited to shallow ceilings.

• Trim finish: White (standard round trim included)
• Housing: Metal
• Lens: Frosted acrylic
• Profile: Slim wafer design for shallow plenums

Certifications, ratings and warranty

This SKU carries multiple manufacturer-listed certifications relevant for commercial projects. Verify specific project requirements against these listings.

• ETL Listed (USA & Canada)
• ENERGY STAR certified
• CA Title 24 JA8 listed
• IC rated and ASTM‑E283 air‑tight
• Wet Location rated (manufacturer specification)
• Warranty: 3‑year limited warranty

Before You Order

Verify ceiling thickness, available plenum depth (minimum 1.5"), desired CCT, and quantity before ordering. Check your dimmer against the manufacturer's tested dimmer list for best compatibility.

• Confirm ceiling cutout (4.33") and available plenum depth (minimum 1.5").
• Select desired CCT at installation (5‑CCT selectable).
• Check dimmer model against the manufacturer's tested dimmer list.
