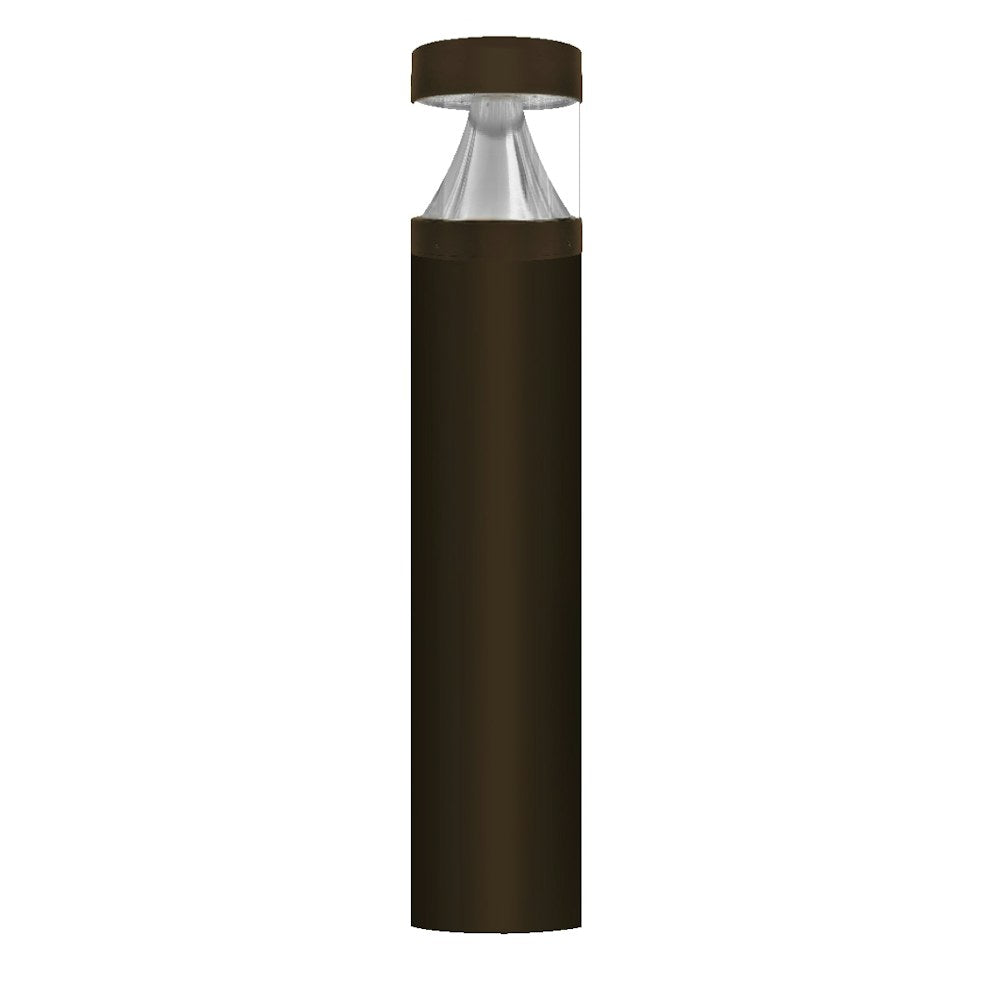

EnVision BLD-3P22-RD-UNV-BZ-44 – Round Bronze

Product Overview

The EnVision BLD-3P22-RD-UNV-BZ-44 is a 44-inch round LED bollard with a bronze finish and 120–277V input.

It has selectable 12W, 16W and 22W settings, producing 1,560, 2,080 and 2,860 lumens respectively. The bollard supports 0–10V dimming and is specified for wet locations with an IP65 rating.

Key Features

• Round LED bollard, 44 inches high, with bronze finish
• Selectable 12/16/22W output: 1,560/2,080/2,860 lumens
• 120–277V input and 0–10V dimming
• Type V beam and wet-location IP65 rating
• UL and DLC listed; five-year limited warranty

Selectable Output and Electrical Details

The BLD-3P22-RD-UNV-BZ-44 offers three selectable wattage settings: 12W, 16W and 22W. Their corresponding lumen outputs are 1,560, 2,080 and 2,860 lumens.

The driver is rated for 120–277V input and supports 0–10V dimming. CRI is greater than 80.

Round Profile and Bronze Finish

This EnVision bollard has a round profile, bronze finish and 44-inch height. Its aluminum housing has a powder-coat finish.

Outdoor Applications and Light Distribution

Listed applications for the bollard family include walkways, pathways, driveways, landscape lighting, outdoor corridors, hospitality and multi-family settings.

This model is specified with a Type V beam and a wet-location IP65 rating.

Mounting Hardware, Listings and Warranty

Included mounting hardware consists of an anchor bolt, washer and nuts. The product is UL listed for the USA and Canada and DLC listed. It has a five-year limited warranty.

Before You Order

Confirm the model number and 44-inch height meet your project requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EnVision BLD-3P22-RD-UNV-BZ-44 – Round Bronze. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
