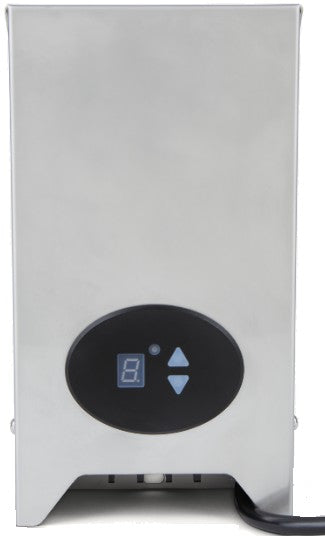

EMCOD SS200W Simple Stainless Steel Landscape Transformer 200W 12VACOR15VAC

Product Overview

The EMCOD SS200W is a simple stainless steel low-voltage landscape transformer designed to power outdoor lighting circuits up to 200 watts. It provides selectable 12VAC or 15VAC output and accepts a 120V, 60Hz supply.

Built with a low-profile toroidal-based design and a 304 stainless steel enclosure, the SS200W includes integrated timer and photocell controls and protection for overloads and short circuits.

Key Features

• 200W maximum load capacity
• Selectable output: 12VAC or 15VAC
• 120V, 60Hz input
• Low-profile toroidal-based design
• 304 stainless steel finish enclosure
• Integrated timer and photocell control
• Overload and short-circuit protection
• UL1838 ETL Listed; DOE and CEC compliant

What this transformer does

The SS200W supplies low-voltage power for landscape lighting circuits. It is intended for outdoor low-voltage fixtures such as pathway, garden, and accent lighting up to the listed 200W maximum load.

• Designed for low-voltage landscape fixtures
• Suitable for pathway, garden, and outdoor accent lighting

Electrical output and input

The SS200W accepts a 120V, 60Hz AC input and provides a selectable low-voltage output. Choose between 12VAC or 15VAC output to match fixture and run requirements.

• Input voltage: 120V, 60Hz
• Output options: selectable 12VAC or 15VAC
• Maximum load: 200W

Controls, protection and compliance

This model includes integrated timer and photocell controls to automate lighting schedules and dusk-to-dawn operation. Built-in overload and short-circuit protection help safeguard connected fixtures and wiring.

Certifications and regulatory compliance listed by the manufacturer include UL1838 ETL Listing and DOE and CEC compliance.

• Integrated timer and photocell
• Overload and short-circuit protection
• UL1838 ETL Listed; DOE and CEC compliant

Size, enclosure and mounting considerations

The SS200W uses a 304 stainless steel enclosure with a low-profile, toroidal-based internal design. Verify the unit's dimensions and material when planning mount location and weather exposure.

• Enclosure: 304 stainless steel finish
• Dimensions: H = 8.47 in, W = 5.31 in, D = 3.65 in
• Low-profile toroidal-based design

Before You Order

Confirm the model number (SS200W) and required quantity before ordering. Ensure the selectable 12VAC or 15VAC output and 200W maximum load match your fixture and run-length requirements.

• Verify fixture voltage requirements (12VAC vs 15VAC) and total wattage does not exceed 200W.
• Plan mounting location considering the stainless steel enclosure dimensions and local electrical code requirements.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EMCOD SS200W Simple Stainless Steel Landscape Transformer 200W 12VACOR15VAC. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
