EMCOD 2-in-1 LED Driver Dimmer 160W 24VDC

Product Overview

The EMCOD EDD160-24DC-CCT combines a 160W constant-voltage 24V DC LED driver with an integrated dimmer and CCT control for tunable-white LED and strip lighting.

Product documentation indicates PWM constant-voltage output, built-in active PFC (per family specification), and protections for short circuit, overload, and over-temperature.

Key Features

• SKU: EDD160-24DC-CCT
• Max load: 160W
• Output: 24V DC constant-voltage (PWM)
• Integrated dimmer with CCT (tunable white) control
• Dimming range: 0.3% to 100% (per family specification)
• Built-in active power factor correction (per family specification)
• Protections: short circuit, overload, over-temperature
• Input voltage: 120VAC
• Not Class 2
• Dimensions: H 4.1" × W 1.73" × D 1.6"

What this unit does

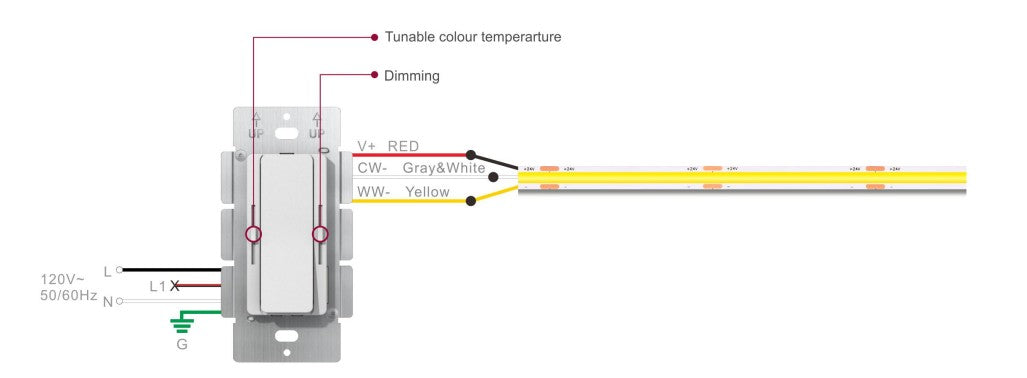

The EDD160-24DC-CCT integrates a 24V DC constant-voltage LED driver with an onboard dimmer and CCT adjustment. It is intended to provide power and tunable-white control for low-voltage LED fixtures and LED tape.

• Combined driver, dimmer and CCT adjustment in one SKU
• Constant-voltage PWM output for 24V LED loads

Power, output and dimming performance

The unit is rated for a maximum load of 160W with a 24V DC output. Family documentation lists a dimming range of 0.3%–100% and identifies the output mode as PWM constant-voltage.

• Max load: 160W
• Output: 24V DC (PWM constant-voltage)
• Dimming range (family specification): 0.3%–100%

Typical applications

Manufacturer materials list tunable-white LED lighting and LED strip lighting as target uses. The form factor and 24V output make it suitable for small-scale low-voltage lighting runs such as cabinet or accent lighting where a constant-voltage driver with integrated dimming and CCT control is required.

• Tunable-white LED installations
• 24V LED strip lighting
• Cabinet and accent lighting
• Low-voltage architectural accent lighting

Protections and electrical features

Product information indicates built-in protections including short-circuit, overload, and over-temperature protection. The family specification notes active power factor correction. Input voltage is listed as 120VAC.

• Short-circuit protection
• Overload protection
• Over-temperature protection
• Active PFC (per family specification)
• Input voltage: 120VAC

Dimensions and installation form

Dimensions are listed as H 4.1 × W 1.73 × D 1.6 (units as provided by manufacturer materials). The product is specified as not Class 2.

• Dimensions: 4.1 × 1.73 × 1.6
• Case quantity: 20
• Class 2: No

Before You Order

Confirm the model number and that a 24V constant-voltage driver with integrated CCT control fits your system requirements.

• Verify compatibility with your 24V LED modules
• Confirm the integrated dimming and CCT controls meet your installation needs
• Note: This SKU is not Class 2 — plan wiring accordingly
