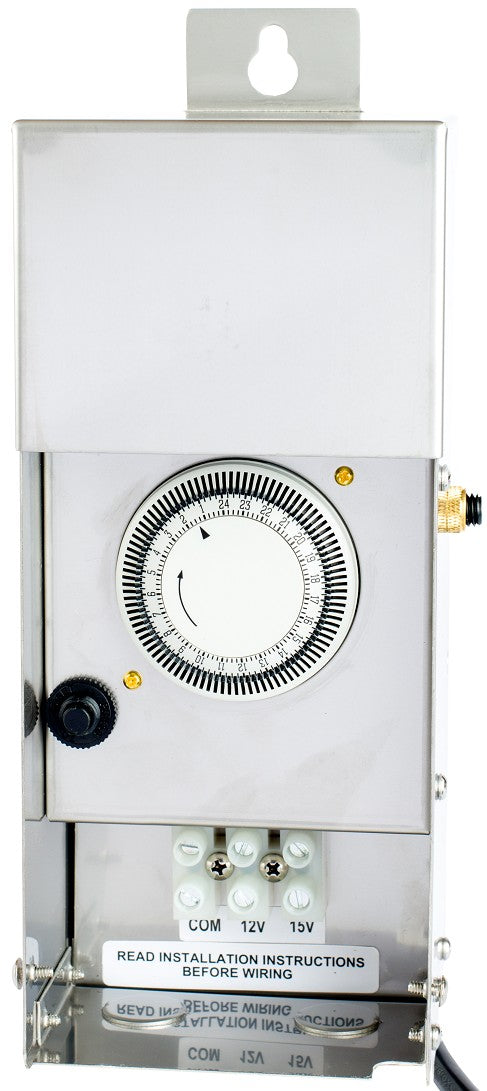

EMCOD ESL100W Outdoor Stainless Steel Landscape Transformer 100W 12VACOR15VAC

Product Overview

The EMCOD ESL100W is an outdoor stainless steel low-voltage transformer designed for landscape lighting circuits up to 100 watts. It provides a selectable secondary output of 12VAC or 15VAC from a 120V 60Hz input and is intended for wet-location installation.

Features include a manual 24-hour timer with photocell, a secondary push-to-reset circuit breaker, a removable slide door for access, and ETL listings to UL STD 1838 and CSA STD C22.2 250.0 and 250.7.

Key Features

• 100W maximum secondary load
• Selectable 12VAC or 15VAC secondary output
• 120V, 60Hz input
• Built-in manual 24-hour timer and photocell
• Secondary push-to-reset circuit breaker
• Stainless steel enclosure with removable slide door
• Rated suitable for wet locations
• ETL Listed to UL STD 1838 and CSA STD C22.2 250.0 and 250.7

What this transformer does

The ESL100W converts 120V AC line power to low-voltage AC for landscape lighting. It supplies a maximum of 100 watts to a secondary output that can be set to either 12VAC or 15VAC depending on system requirements.

• Primary input: 120V, 60Hz
• Secondary selectable output: 12VAC or 15VAC
• Maximum secondary load: 100W

Where to use it

This transformer is designed for outdoor landscape lighting applications where a weather-resistant stainless steel enclosure is preferred. Common uses include path and garden lighting and other low-voltage outdoor circuits.

• Low-voltage landscape lighting
• Outdoor path and garden fixtures
• Long-run landscape circuits requiring up to 100W

Electrical and performance details

The ESL100W includes features that simplify circuit protection and automated control for outdoor lighting systems.

• Built-in manual 24-hour timer and photocell for scheduled and dusk-to-dawn operation
• Secondary push-to-reset circuit breaker provides overcurrent protection on the low-voltage side

Size and enclosure

The unit comes in a stainless steel enclosure sized for outdoor mounting and access.

• Dimensions: Height = 11.35 in, Width = 4.05 in, Depth = 4.05 in
• Removable slide door for service access
• Stainless steel finish suitable for wet locations

Certifications and safety features

The ESL100W carries third-party listings and built-in safeguards appropriate for landscape lighting installations.

• ETL Listed to UL STD 1838 and CSA STD C22.2 250.0 and 250.7
• Rated suitable for wet locations
• Secondary push-to-reset breaker for fault protection

Before You Order

Confirm the exact model number and the number of transformers required for your project. Verify that a 100W maximum secondary load and selectable 12VAC/15VAC output meet the needs of your lighting fixtures and run lengths.

• Match fixture voltage requirements (12VAC vs 15VAC) before selecting output tap.
• Confirm physical dimensions and mounting location clearance: H = 11.35 in, W = 4.05 in, D = 4.05 in.
• Check local electrical codes and wiring practices for outdoor low-voltage transformers and wet-location installations.
