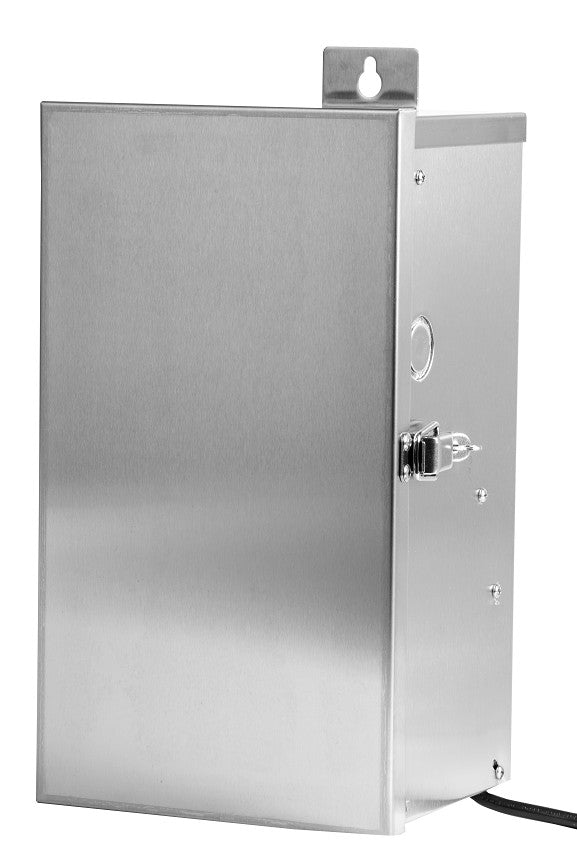

EMCOD EMT600SS-E Economy Multi-Tap Landscape Transformer 600W 12V-15VAC

Product Overview

The EMCOD EMT600SS-E is a 600W economy multi-tap landscape transformer designed for long-run and multi-zone low-voltage lighting systems. It provides selectable secondary taps (12V, 13V, 14V, 15V AC) to compensate for voltage drop on extended runs.

Built for outdoor landscape applications, the unit includes a large terminal block, high-grade core and copper winding, optional built-in timer and photocell configurations, a secondary toggle-switch circuit breaker, and a NEMA 3R wet-location rating. It is ETL Listed to UL STD 1838 and CSA STD C22.2 250.0 and 250.7.

Key Features

• 600W maximum load capacity
• Multi-tap secondary outputs: 12V, 13V, 14V, 15V AC
• Input: 120V, 60Hz
• Large terminal block and heavy-gauge copper windings
• Secondary toggle-switch circuit breaker
• Optional built-in timer and photocell
• NEMA 3R rated for wet locations
• ETL Listed to UL 1838 and CSA C22.2 250.0 and 250.7

Function and purpose

The EMT600SS-E is a multi-tap low-voltage transformer that steps down 120V AC to selectable low-voltage secondary outputs for landscape lighting. The multi-tap outputs allow installers to select a higher secondary voltage to compensate for voltage drop on long runs, helping maintain proper fixture illumination at the far end of a circuit.

• Primary input: 120V, 60Hz
• Secondary selectable taps: 12V, 13V, 14V, 15V AC

Recommended applications

Use this transformer for long-run landscape lighting projects, multi-zone installations, path and accent lighting, and outdoor LED landscape fixtures where voltage drop is a concern. The unit's weather-resistant rating and optional controls make it suitable for many exterior site applications.

• Long-run landscape lighting circuits
• Outdoor LED fixtures and accent lighting
• Multi-zone residential or commercial landscape systems

Electrical output and load

Design circuits based on the transformer's rated capacity and selectable secondary taps. The EMT600SS-E supports a maximum continuous load of 600 watts and provides 12V–15V AC output options to match circuit requirements.

• Maximum load: 600W
• Output choices: 12V, 13V, 14V, 15V AC (multi-tap)

Key features and certifications

The transformer includes installer-friendly features and safety listings important for exterior electrical equipment. Confirm required controls and protective devices for your installation.

• Large terminal block for wiring connections
• High-grade core and copper winding construction
• Secondary toggle-switch circuit breaker
• Optional built-in timer and photocell configurations
• NEMA 3R rating for wet locations
• ETL Listed to UL STD 1838 and CSA STD C22.2 250.0 and 250.7

Dimensions and physical details

Verify physical space and mounting considerations against the transformer's published dimensions prior to installation.

• Dimensions: H = 14.5 in, W = 6.75 in, D = 6 in
• SKU / Item Number: EMT600SS-E
• UPC: 810064711503

Before You Order

Confirm the exact model number and quantity required for your project. Verify that a 600W maximum load and the available 12V–15V taps meet fixture requirements and circuit-length considerations.

• Confirm load calculations and selected secondary tap to compensate for voltage drop.
• Verify required control options (timer, photocell) when specifying the unit.
• Check mounting space against published dimensions prior to ordering.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for EMCOD EMT600SS-E Economy Multi-Tap Landscape Transformer 600W 12V-15VAC. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
