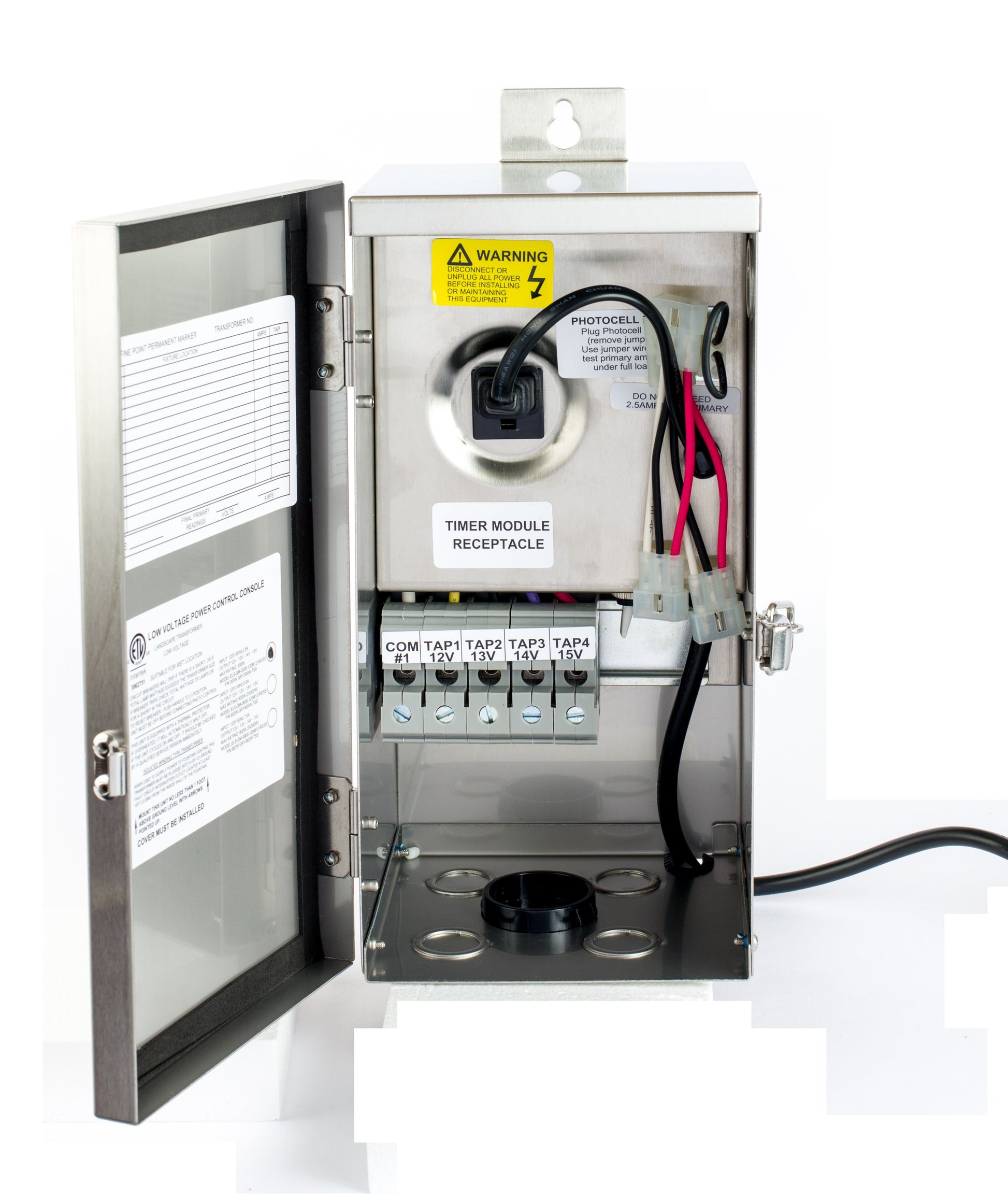

EMCOD EMT300SS-E Economy Multi-Tap Landscape Transformer 300W 12V-15VAC

Product Overview

The EMCOD EMT300SS-E is an economy multi-tap landscape transformer with a 300W maximum load and 12V-15V AC output. It is described for landscape lighting, including long-run applications and LED landscape fixtures.

The EMT-E family has 12V, 13V, 14V, and 15V output taps. The transformer has a 120V, 60Hz input, a large terminal block, and a secondary toggle-switch circuit breaker.

Key Features

• 300W maximum load with 12V-15V AC output
• The EMT-E family includes 12V, 13V, 14V, and 15V output taps
• 120V, 60Hz input
• NEMA 3R rating and suitability for wet locations
• ETL Listed to UL STD 1838 and CSA STD C22.2 250.0 and 250.7

Output Taps for Landscape Lighting

The EMT300SS-E has 12V-15V AC output for landscape lighting. The EMT-E family includes 12V, 13V, 14V, and 15V taps. Multi-tap output is described for compensating for voltage drop on long runs.

• Described for LED landscape fixtures
• Stated uses include long-run landscape lighting, path lighting, and accent lighting

Input and Maximum Load

This transformer has a 120V, 60Hz input and a maximum load rating of 300W.

• Large terminal block
• Secondary toggle-switch circuit breaker

Location Rating and Listings

The EMT300SS-E has a NEMA 3R rating and is described as suitable for wet locations. Its stated listings are ETL Listed to UL STD 1838 and CSA STD C22.2 250.0 and 250.7.

Transformer Dimensions

Dimensions are H = 13, W = 5.56, and D = 5.54. Units are not specified.

Before You Order

Check that the 300W maximum load and 12V-15V AC output meet your project requirements.
