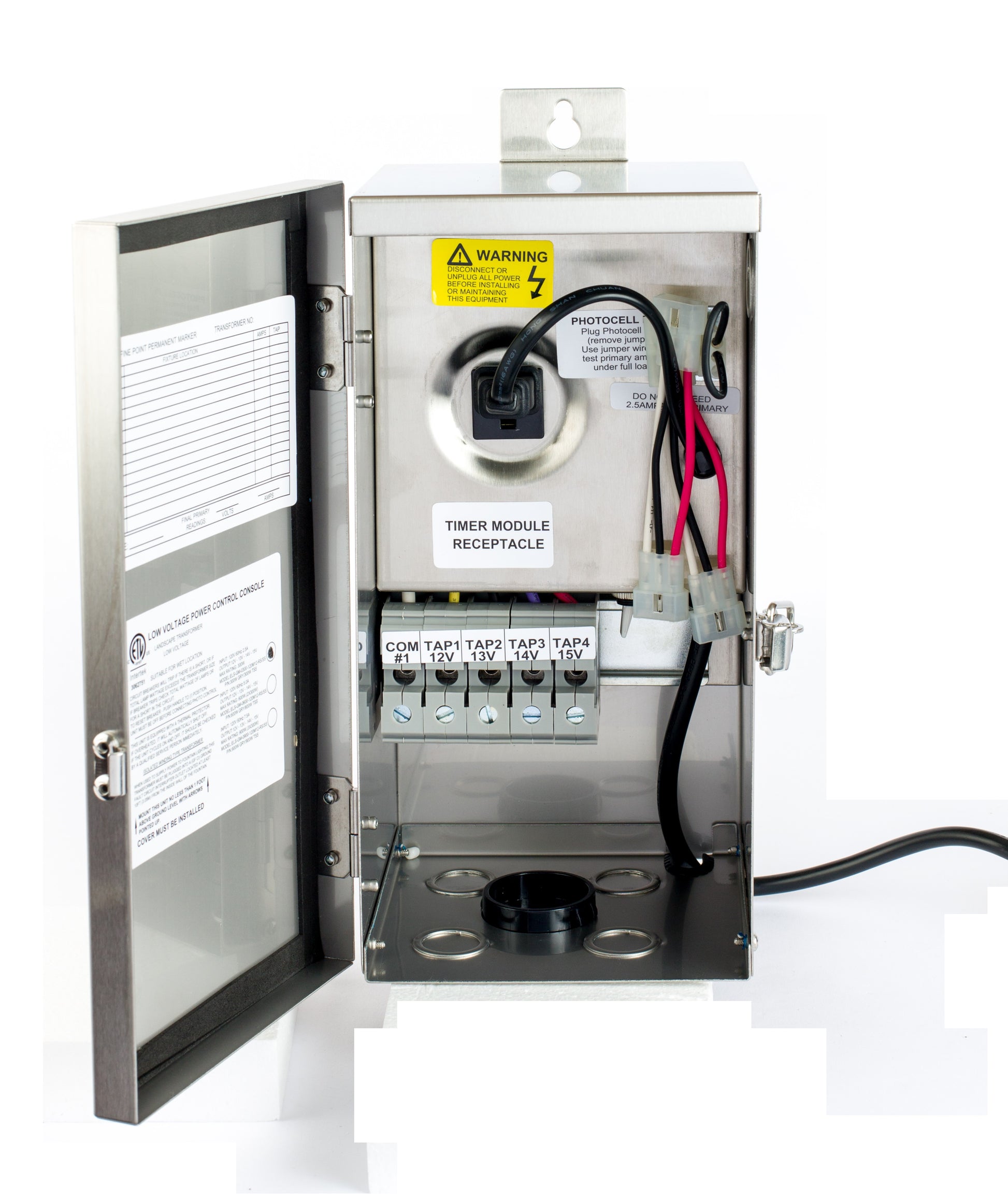

EMCOD EMT150SS-E Economy Multi-Tap Landscape Transformer 150W 12V-15VAC

Product Overview

The EMCOD EMT150SS-E is an economy multi‑tap landscape transformer for low‑voltage outdoor lighting. It provides selectable 12V, 13V, 14V, and 15V AC secondary taps to help compensate for voltage drop on longer cable runs.

This model supports a maximum load of 150W, accepts 120V 60Hz input, and is NEMA 3R rated. Optional factory configurations include a built‑in timer and photocell; it also features a large terminal block and a secondary toggle‑switch circuit breaker.

Key Features

• 150W maximum load capacity
• Multi‑tap secondary outputs: 12V, 13V, 14V, 15V AC
• 120V 60Hz primary input
• Large terminal block
• Secondary toggle‑switch circuit breaker
• Optional built‑in timer and photocell configurations
• NEMA 3R enclosure rating
• ETL Listed to UL 1838; CSA C22.2 250.0 and 250.7

What this transformer does

The EMT150SS-E supplies low‑voltage AC power for outdoor landscape lighting circuits. Its multi‑tap secondary output (12V–15V) gives installers options to address voltage drop without re‑wiring fixtures.

• For connecting low‑voltage landscape fixtures, including LED fixtures.
• Multi‑tap outputs provide flexibility for multi‑zone or longer wire runs.

Load and output

Rated for a maximum continuous load of 150 watts, with secondary taps at 12V, 13V, 14V, and 15V AC. The primary input is 120V at 60Hz.

• Maximum load: 150W
• Secondary taps: 12V, 13V, 14V, 15V AC
• Primary input: 120V, 60Hz

Installation and mounting considerations

The unit is NEMA 3R rated for outdoor/wet locations and includes a large terminal block for wiring. A secondary toggle‑switch circuit breaker is included for localized protection. Timer and photocell options are available as factory configurations.

• NEMA 3R enclosure suitable for outdoor/wet locations
• Large terminal block for multiple connections
• Secondary toggle‑switch circuit breaker
• Optional built‑in timer and photocell (configure if required)

Technical and compliance details

Part of the EMT‑E economy landscape multi‑tap family. The product carries ETL and CSA listings for low‑voltage landscape lighting equipment and includes a UPC for identification.

• ETL Listed to UL 1838
• CSA C22.2 250.0 and 250.7
• UPC: 810064711466

Before You Order

Verify the EMT150SS-E model and quantity before ordering, and confirm the 150W maximum load meets the combined wattage of your fixtures.

• Ensure total fixture wattage does not exceed 150W.
• Choose the secondary tap (12–15V AC) appropriate for your run lengths if compensating for voltage drop.
