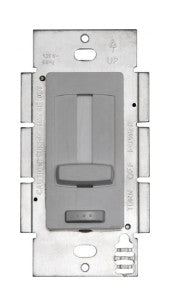

ELCO Lighting DIMTP2 Dimmer With Driver 60W 120V input / 24V DC output

Product Overview

The ELCO Lighting DIMTP2 is a combined dimmer and LED driver that provides up to 60W output for low-voltage LED lighting systems. It accepts a 120V AC input and supplies low‑voltage DC to connected LED tape, modules, or fixtures.

Use the DIMTP2 when a single component is preferred to both provide regulated low-voltage power and enable dimming control; confirm the connected load’s voltage and dimming protocol before installation.

Key Features

• 60W total output capacity to the connected LED load
• Designed for 120V AC mains input
• Integrated dimmer plus driver in a single unit for low‑voltage LED applications
• Intended for tape, module, architectural lighting, retrofit and contractor stock applications

What this unit does

The DIMTP2 combines a line‑voltage dimmer with a low‑voltage LED driver to supply and dim LED loads from a single device. It is intended to both power and control low‑voltage LED lighting where a 60W capacity is sufficient.

• Delivers regulated low‑voltage DC output to connected LED fixtures or tape
• Provides dimming control integrated with the driver functionality

Typical applications

Specify the DIMTP2 for low‑voltage LED uses where integrated dimming and a single‑component solution are desirable.

• LED tape and module power
• Architectural accent or cove lighting
• Retrofit projects and contractor stock for low‑voltage LED circuits

Electrical input and output

Confirm electrical compatibility for each installation to ensure safe operation and correct dimming behavior.

• Input: 120V AC (mains)
• Output: low‑voltage DC to supply up to 60W of LED load
• Total connected load must not exceed 60W

Compatibility and installation notes

The DIMTP2 requires matching the driver output and dimming method to the connected fixtures. Verify fixture voltage and the supported dimming protocol before wiring or specifying on a schedule.

• Confirm output voltage and wattage with the fixture or LED strip being driven
• Confirm the dimming protocol required (for example ELV/TRIAC/0‑10V) before installation
• Match the total load to the 60W output rating

Before You Order

Confirm the model number and the total wattage and voltage requirements of the connected LED load before ordering. Ensure the DIMTP2’s 60W output and the dimming protocol match your fixtures.

• Verify fixture/system voltage matches the driver output
• Verify total connected load does not exceed 60W
• Confirm required dimming protocol (ELV, TRIAC, 0‑10V, etc.) prior to installation

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for ELCO Lighting DIMTP2 Dimmer With Driver 60W 120V input / 24V DC output. For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
