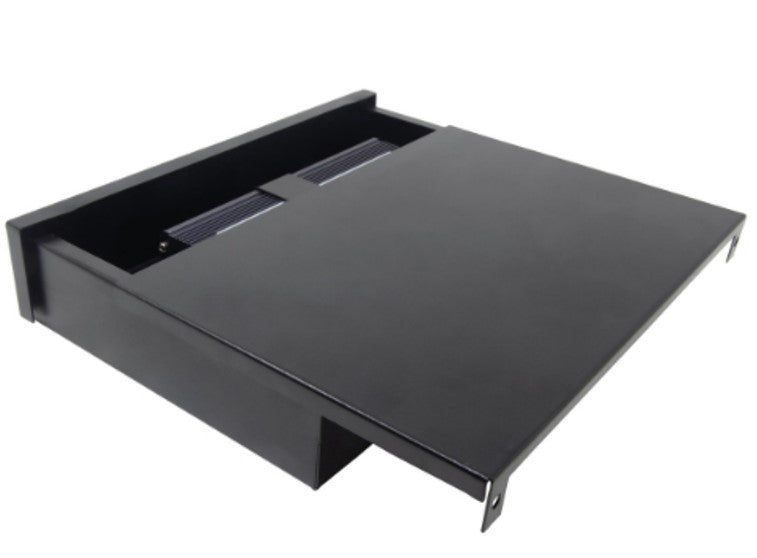

Diode LED LO-PRO Small NEMA3R Wet Location Junction Box and Driver Combo - 24V OMNIDRIVE Electric Dimmable Driver - 60W (DI-TD-24V-60W-LPS3R)

Product Overview

The Diode LED DI-TD-24V-60W-LPS3R is a 60 W, 24 VDC constant-voltage LED driver intended for low-voltage LED lighting.

It integrates a low-profile (LO-PRO) junction box and has a wet-location (NEMA 3R) rating, providing regulated 24 VDC output for LED tape and fixtures.

Key Features

• 60 W constant-voltage output at 24 VDC.
• LO-PRO integrated junction box — driver and wiring enclosure combined in a single low-profile housing.
• Wet-location (NEMA 3R) rating for damp and wet installation sites.
• Regulated constant-voltage output for connected LED loads.

What this unit does

This unit is a constant-voltage LED driver that provides a regulated 24 VDC output and is rated for up to 60 W of combined load.

• Output type: constant-voltage (24 VDC).
• Maximum output power: 60 W.

Typical applications

Used to power low-voltage LED tape and fixtures where a 24 VDC constant-voltage source and a wet-location rated enclosure are required.

• Low-voltage LED tape/strip lighting
• Low-voltage LED fixtures
• Installations requiring a wet-location (NEMA 3R) rated enclosure

Electrical output and load limits

Ensure the total connected LED load does not exceed the driver’s rated 60 W at 24 VDC.

• Nominal output voltage: 24 VDC
• Maximum combined load: 60 W

Enclosure and environmental rating

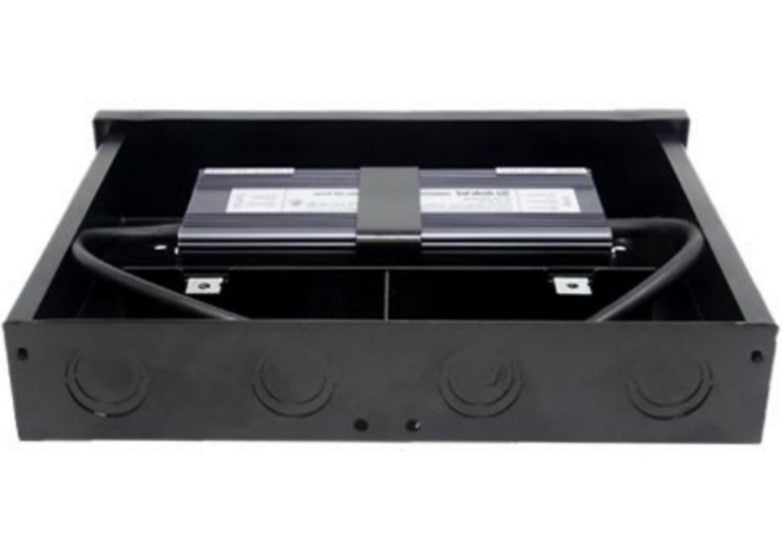

The driver is supplied in a low-profile LO-PRO junction box and is specified with a wet-location (NEMA 3R) rating for damp and wet sites.

• Integrated LO-PRO junction box (driver and wiring enclosure combined)
• Wet-location (NEMA 3R) rating

Before You Order

Confirm the model number and that the total connected LED wattage does not exceed 60 W at 24 VDC.

• Verify total connected LED wattage ≤ 60 W at 24 VDC.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED LO-PRO Small NEMA3R Wet Location Junction Box and Driver Combo - 24V OMNIDRIVE Electric Dimmable Driver - 60W (DI-TD-24V-60W-LPS3R). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
