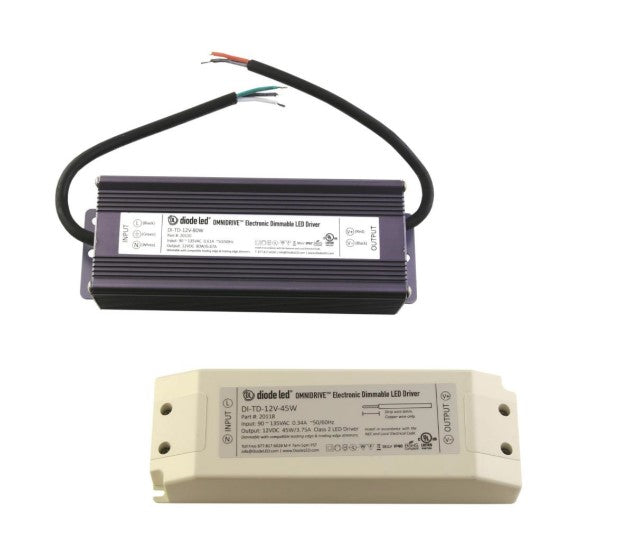

Diode LED LO-PRO Junction Box and Driver Combo - 12V OMNIDRIVE Electric Dimmable Driver - 45W (DI-TD-12V-45W-LPL)

Product Overview

The Diode LED DI-TD-12V-45W-LPL is a 45 W, 12 VDC constant-voltage LED driver with an integrated LO-PRO junction box that combines the driver and wiring terminations in one low-profile enclosure.

It provides regulated 12 VDC output intended for powering low-voltage LED tape and fixtures and is rated as a Class 2 output device.

Key Features

• 45 W maximum output at 12 VDC (constant-voltage)
• Integrated LO-PRO junction box combining driver and wiring box in one low-profile housing
• Class 2 output
• Powder-coated stainless steel housing with 0.5 in. knockouts for indoor installation

What this driver does

The DI-TD-12V-45W-LPL supplies a regulated 12 VDC constant-voltage output for low-voltage LED tape and fixtures. The integrated LO-PRO junction box houses the driver and wiring terminations in a single enclosure.

Electrical output and load limits

This model provides up to 45 watts of output at 12 VDC and is a constant-voltage, Class 2 rated device. Confirm connected load does not exceed 45 W at 12 VDC.

• Nominal output voltage: 12 VDC
• Maximum output power: 45 W
• Output type: Constant voltage
• Class rating: Class 2

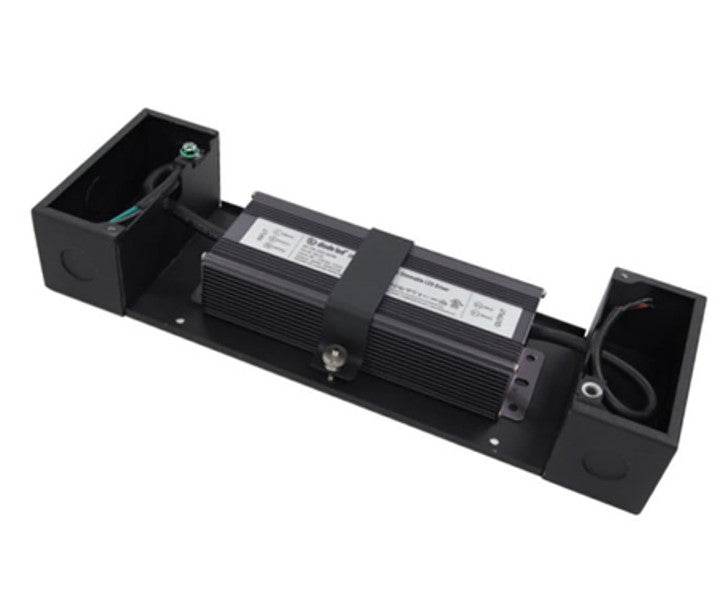

Mounting and junction box features

The unit integrates driver electronics with a LO-PRO style junction box in a powder-coated stainless steel housing intended for indoor installation. The enclosure includes 0.5 in. knockouts for field wiring.

• Integrated LO-PRO junction box
• Housing: powder-coated stainless steel
• Knockouts: 0.5 in.

Intended applications

Suitable for powering low-voltage LED tape and fixtures in commercial and residential low-voltage lighting projects where a regulated 12 VDC, Class 2 constant-voltage supply is required.

• Low-voltage LED tape and fixture power
• Commercial and residential low-voltage lighting
• Retrofit and new-construction low-voltage projects

Before You Order

Verify the combined connected load does not exceed 45 W at 12 VDC.

• Check total LED tape/fixture wattage stays within 45 W at 12 VDC
• Verify mounting clearances and knockout access for the LO-PRO junction box
