Diode LED Tape Light Terminal Block Connector, Screw Down, 8mm, Tape-To-Tape, 5 Pack (DI-TB8-CONN-TTT-5)

Product Overview

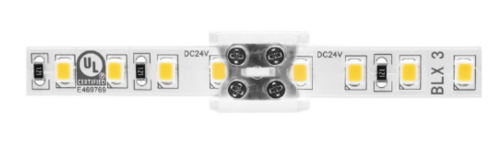

The Diode LED DI-TB8-CONN-TTT-5 is a screw-down terminal block connector made for 8 mm LED tape. It provides solderless tape-to-tape joins and is supplied as a 5-pack.

Its compact, clear body clamps the tape’s copper contacts and accepts copper wire, allowing connections to fit into shallow channels and tight corners for indoor low-voltage installations.

Key Features

• Screw-down terminals for solderless connections to 8 mm LED tape and copper wire
• Compatible with 8 mm LED tape only
• Voltage: 12–24 VDC; maximum current: 12V — 5A / 24V — 4A
• Accepts 16–20 AWG copper wire
• Includes 3M adhesive tape; package quantity: five connectors
• Clear low-profile casing intended to minimize visible discontinuities between tape segments
• Indoor use; ambient temperature range −4°F to 122°F (−20°C to 50°C)
• Five-year limited manufacturer warranty

What this connector does

The DI-TB8-CONN-TTT-5 provides a secure, solderless tape-to-tape connection for 8 mm LED tape. Its screw-down terminals clamp the tape’s copper contacts and accept copper wire, enabling tape joins, jumper runs, and repairs without soldering.

• Creates tape-to-tape splices for joining or extending 8 mm tape runs
• Can be used for tape-to-wire splices when used with models designed for tape-to-wire connections
• Clear casing is intended to reduce visible gaps in continuous light runs

Voltage and current ratings

Use the connector within its rated voltage and current limits. Exceeding these ratings can cause overheating or failure.

• Voltage: 12–24 VDC
• Maximum current: 12V — 5 A; 24V — 4 A
• Wire gauge supported: 16 AWG to 20 AWG (copper only)

Compatibility and common applications

Intended for indoor low-voltage installations using 8 mm wide LED tape. Typical uses include cabinet lighting, coves, returns, and interior splice or repair work where a compact, solderless connector is needed.

• Fits 8 mm LED tape only — do not use with other tape widths
• Compact profile suits shallow channels and tight corners
• Supplied as a 5-pack for multiple runs or spare parts

Installation and safety notes

Install according to applicable electrical codes and the manufacturer's installation guidance. This product is intended to be installed and serviced by qualified personnel.

• Loosen screw terminals, insert cut 8 mm tape and copper wire, then tighten screws to secure connections (size #0 or mini Phillips screwdriver recommended)
• Ensure correct polarity on both sides of the connector
• Use only copper conductors rated for at least 176°F (80°C)
• Use with a Class 2 DC constant-voltage LED driver; each maximum run requires a dedicated power feed from the driver
• Indoor locations only; not rated for wet or outdoor installations
• Ambient temperature range: −4°F to 122°F (−20°C to 50°C)

Before You Order

Confirm your LED tape is 8 mm wide and that system voltage and expected run amperage are within the connector’s ratings before ordering.

• Verify tape width = 8 mm; do not use with other widths
• Confirm system voltage (12 VDC or 24 VDC) and that expected run current does not exceed 12V—5A or 24V—4A
• Use copper wire 16–20 AWG rated for at least 176°F (80°C); follow code for in-wall or concealed wiring (connector and attached leads are not in-wall rated unless specified)
• Have a qualified, licensed electrician perform installation and final verification

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED Tape Light Terminal Block Connector, Screw Down, 8mm, Tape-To-Tape, 5 Pack (DI-TB8-CONN-TTT-5). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
