Diode LED Tape Light Terminal Block Connector, Screw Down, 8mm, Tape-To-Tape - Pack of 25 individually bagged, 25 Pack (DI-TB8-CONN-TTT-25)

Product Overview

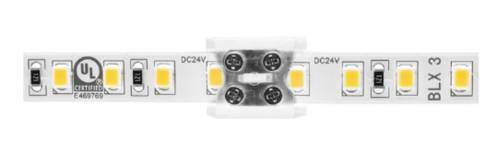

The Diode LED DI-TB8-CONN-TTT-25 is a screw-down terminal block designed to join two lengths of 8 mm LED tape without soldering. Its compact, clear casing is intended for tight channels and returns.

Supplied as a pack of 25 individually bagged connectors, each accepts 16–20 AWG copper wire, includes 3M adhesive tape, and is rated for indoor low-voltage installations with a five-year limited manufacturer warranty.

Key Features

• Screw-down terminals for solderless connections to tape and wire
• Designed for 8 mm LED tape
• Clear, compact housing to minimize visible interruption between connected tape segments
• Accepts 16 AWG–20 AWG copper wire; includes 3M adhesive tape
• Electrical rating: 12–24 VDC; maximum amperage: 12V — 5 A; 24V — 4 A
• Pack of 25 individually bagged connectors
• Indoor location rating; ambient temperature range: -4° to 122°F (-20° to 50°C)
• Five-year limited warranty from the manufacturer

What this connector does

The DI-TB8-CONN-TTT-25 is a tape-to-tape terminal block that secures two lengths of 8 mm LED tape together using screw-down terminals. It creates a mechanical and electrical connection without soldering.

• Solderless splice between two 8 mm tape segments
• Can be used for tape-to-wire splices or short jumper connections when wired appropriately
• Clear casing is intended to reduce visible interruption between connected tape segments

Electrical ratings and wire requirements

Use the connector only within the listed electrical limits and with copper conductor wiring.

• Voltage: 12–24 VDC
• Maximum amperage: 12V — 5 A; 24V — 4 A
• Wire gauge: 16 AWG to 20 AWG (copper only)
• Use with a Class 2 DC constant-voltage LED driver as required for low-voltage tape light systems

Installation and installation limits

Install by loosening the screw terminals, inserting the cut-to-length tape (cut at the marked scissors line) and/or copper wire, then tightening the screws to clamp the conductors. A #0 or mini Phillips screwdriver is recommended.

• Includes 3M adhesive tape for positioning or securing in channels
• Intended for indoor, non-wet locations only
• Follow local and national electrical codes and have installation performed by a qualified, licensed electrician
• Observe polarity when connecting both sides of a tape-to-tape splice

Tape and channel compatibility

This connector is designed for 8 mm LED tape and has a compact profile for shallow channels and narrow returns commonly used in cabinets, coves, and accent installations.

• Compatible tape width: 8 mm only
• Fits many slim and narrow channel profiles; verify physical fit for your chosen channel
• Not rated for wet locations or in-wall installation unless the tape and accessories used are explicitly rated for those conditions

Packaging, warranty and environment

The DI-TB8-CONN-TTT-25 is supplied as a pack of 25 individually bagged connectors. The manufacturer provides a five-year limited warranty when the product is used according to their specifications.

• Package quantity: 25 connectors
• Environment: Indoor use only; ambient temperature -4° to 122°F (-20° to 50°C)
• Five-year limited warranty (see manufacturer for full terms and exclusions)

Before You Order

Confirm the model number, tape width (8 mm), and quantity required. Ensure your total run current does not exceed the connector’s ratings and that you will use copper conductors.

• Use only with Class 2 DC constant-voltage LED drivers and copper wire rated for at least 176°F (80°C).
• Intended for indoor, non-wet locations and should be installed per local electrical codes by a qualified, licensed electrician.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED Tape Light Terminal Block Connector, Screw Down, 8mm, Tape-To-Tape - Pack of 25 individually bagged, 25 Pack (DI-TB8-CONN-TTT-25). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
