Diode LED Tape Light 90 Degree Corner Connector With Attached 8mm Tape-to-Tape Terminal Blocks - Pack of 25, Singles, 25 Pack (DI-TB8-90-TTT-25)

Product Overview

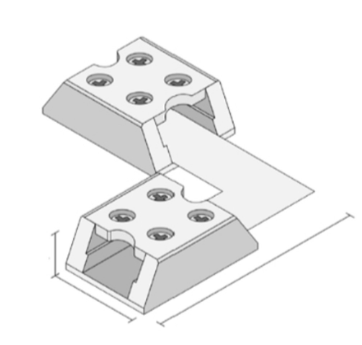

Solderless 90° tape-to-tape terminal block for 8 mm LED tape (DI-TB8-90-TTT-25).

Compact clear housing fits shallow channels and tight corners; supplied as a pack of 25 for multi-run work.

Key Features

• For 8 mm LED tape — tape-to-tape (90°) connections
• Compact clear housing to minimize visible dark spots at the join
• Screw-down terminals; accepts 16–20 AWG wire for terminations
• Rated for 12–24 VDC; max amperage: 5 A at 12 V, 4 A at 24 V
• Includes 3M adhesive backing
• Rated for indoor use with ambient range −4° to 122°F (−20° to 50°C)
• 5-year limited warranty

What this connector does

The DI-TB8-90-TTT-25 is a solderless 90° tape-to-tape terminal block made for 8 mm LED tape. It provides a screw-terminal connection between two lengths of tape to form a right-angle join without solder.

• Creates tape-to-tape connections for continuing runs around corners
• Clear housing is intended to reduce visible dark spots at the connection
• Supplied in a pack of 25 for multi-run projects

Electrical ratings and wiring

Use the connector within the listed electrical limits and wiring guidance.

• Voltage: 12–24 VDC
• Maximum current: 5 A at 12 V; 4 A at 24 V
• Screw terminals accept 16–20 AWG copper wire
• Install with a Class 2 DC constant-voltage LED driver per manufacturer guidance

Installation, mounting, and compatibility

The connector's compact profile is intended to fit shallow channels, returns, and tight corners in interior installations. It includes 3M adhesive for positioning and screw terminals for the final connection.

• Fits 8 mm wide LED tape only — confirm tape width before ordering
• Rated for indoor environments with ambient temperature −4° to 122°F (−20° to 50°C)
• Follow manufacturer instructions: cut tape at marked cut lines, match polarity, and tighten terminals with a small Phillips screwdriver
• Not rated for wet locations; in-wall installation and wet-location use require components specifically rated for those conditions

Verified specifications

Manufacturer-verified technical attributes for quick reference.

• Brand / Model: Diode LED DI-TB8-90-TTT-25
• Connection type: Tape-to-tape (90°)
• Compatible tape width: 8 mm
• Package quantity: 25
• Included accessory: 3M adhesive tape
• Warranty: 5-year limited warranty (see manufacturer for details)

Before You Order

Confirm the tape is 8 mm wide and that system voltage and maximum run lengths are compatible with the connector and your LED driver.

• For indoor low-voltage installations only; do not assume suitability for wet locations or in-wall use unless all components are rated accordingly
• Connector accepts 16–20 AWG copper wire; use wires rated to at least 176°F (80°C)
• Installation and servicing should follow local electrical code and manufacturer instructions; consider using a qualified electrician
