Diode LED Tape Light Terminal Block, 8mm, Jumper Cable (Tape to Tape), 6 in 20 AWG Wire Lead, White - Pack of 25, Bulk, 25 Pack (DI-TB8-6JPR-TTT-25B)

Product Overview

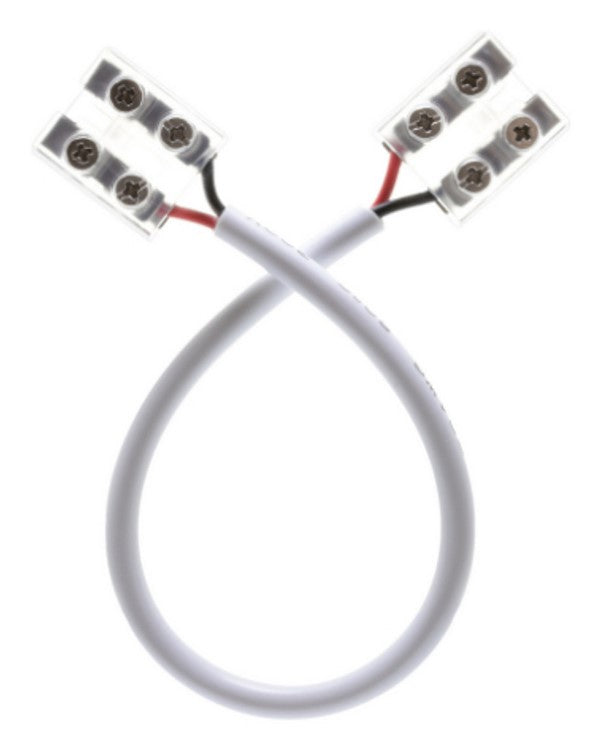

The Diode LED DI-TB8-6JPR-TTT-25B is an 8 mm tape-to-tape terminal block jumper supplied as a 25 pack for multi-run low-voltage LED tape installations.

It uses screw-down terminals and a compact clear housing to create solderless tape-to-tape splices or short jumper runs using the attached 6 in. wire leads.

Key Features

• For 8 mm LED tape — tape-to-tape jumper connector
• Includes 6 in. jumper leads (20 AWG) with screw-down termination
• Clear, compact housing to minimize visible gap at connections
• 3M adhesive tape on housing for surface mounting
• Indoor use; ambient rated −4° to 122°F (−20° to 50°C)
• Manufacturer limited 5-year warranty

What this connector does

This connector joins two lengths of 8 mm LED tape or provides a short jumper using the attached wire leads without soldering. Screw-down terminals secure the tape conductors and wire for a mechanical low-voltage connection.

• Connects two 8 mm LED tape lengths (tape-to-tape)
• Allows short jumper runs using the 6 in. attached leads

Electrical ratings and wire compatibility

Use with 12–24 VDC constant-voltage LED systems and appropriate Class 2 drivers. Follow the manufacturer's stated ampacity and wire gauge recommendations.

• Voltage: 12–24 VDC
• Max amperage: 12 V — 5 A; 24 V — 4 A
• Wire gauge: supports 16–20 AWG; includes 20 AWG leads

Installation and mounting considerations

The connector has screw-down terminals and includes 3M adhesive tape for surface mounting. Install in accordance with applicable electrical codes and manufacturer instructions.

• Intended for indoor use; ambient rating −4° to 122°F (−20° to 50°C)
• Use copper wiring rated for at least 176°F (80°C)
• Install with a Class 2 DC constant-voltage LED driver
• Manufacturer guidance recommends qualified installers for code-required work

Compatibility and physical fit

Designed specifically for 8 mm tape, the compact clear housing fits shallow channels and tight corners to reduce visible gaps between connected tape runs.

• Compatible tape width: 8 mm only
• Compact body suited for shallow channels and tight corners
• Supplied quantity: 25 connectors

Before You Order

Confirm you need 8 mm tape-to-tape jumpers in a 25-pack and that your LED driver and wiring meet the connector's electrical limits.

• Verify tape width is 8 mm — not compatible with other widths
• Each maximum run requires a dedicated power feed from the driver per manufacturer guidance
• Use copper wiring rated for at least 176°F (80°C) and a Class 2 DC constant-voltage driver
• Consult a licensed electrician for in-wall or code-restricted installations
