Diode LED Tape Light Terminal Block, 8mm, Jumper Cable (Tape to Tape), 6 in 20 AWG Wire Lead, White - Pack of 25, Singles, 25 Pack (DI-TB8-6JPR-TTT-25)

Product Overview

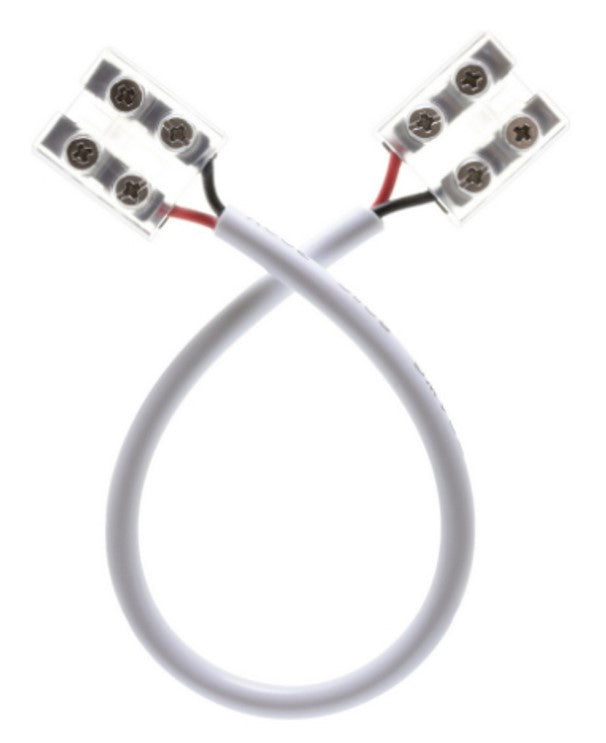

The Diode LED DI-TB8-6JPR-TTT-25 is a solderless tape-to-tape terminal block and jumper designed for 8 mm LED tape. Each connector includes a 6 in (approx.) 20 AWG wire lead and a clear compact casing. Supplied as a pack of 25 for multi-run or multi-feed projects.

The connector uses screw-down terminals to secure tape and wire and includes 3M adhesive tape for mounting. It is specified for indoor low-voltage LED tape installations.

Key Features

• For 8 mm LED tape (tape-to-tape connection)
• 6 in, 20 AWG jumper leads included
• Clear compact housing
• Screw-down terminal for secure contact
• Includes 3M adhesive tape
• Pack quantity: 25 (DI-TB8-6JPR-TTT-25)

What this connector does

This product provides a solderless tape-to-tape splice for 8 mm LED tape runs. It functions as a jumper cable to connect two lengths of tape without soldering, allowing runs to be joined or routed where needed.

• Tape-to-tape connection (TTT configuration)
• Clear housing to reduce visible gap at the connection
• Screw-down terminals secure tape and wire

Electrical ratings and wiring

Use the connector within the manufacturer-specified DC voltage and current limits and with appropriate wire types.

• Voltage rating: 12–24 VDC
• Maximum current: 5 A at 12 V; 4 A at 24 V
• Supported wire gauge: 16–20 AWG (connector supplied with 20 AWG leads)
• Manufacturer guidance: use copper wiring rated for at least 176°F (80°C)
• Intended for use with a Class 2 DC constant-voltage LED driver

Installation and mounting considerations

Install by loosening the terminal screws, inserting the cut 8 mm tape and the wire leads, then fastening the screws. A #0 or mini Phillips screwdriver is recommended. The included 3M adhesive tape can be used to help secure the connector in place.

• Observe polarity when connecting both sides of the tape-to-tape splice
• Do not modify the product; modifications can void the warranty
• Observe ambient temperature limits: -4° to 122°F (-20° to 50°C)

Recommended applications and environment

The connector is intended for indoor low-voltage LED tape lighting installations where solderless splicing or jumpers are needed. Typical uses include cabinets, coves, returns, and repair work where 8 mm tape must be joined or fed.

• Indoor use only — not rated for wet or outdoor locations
• Avoid installation where LED chips are exposed to direct sunlight or excessive heat
• Each maximum run requires a dedicated power feed from the driver per manufacturer guidance

Compatibility and recommended channels

This connector is made for 8 mm tape. Manufacturer recommendations list several channel profiles commonly used with 8 mm tape; verify tape and channel compatibility for your installation.

• Compatible tape width: 8 mm
• Manufacturer lists recommended channel profiles for use with 8 mm tape (confirm fit before ordering)
• Manufacturer lists compatible tape series; confirm compatibility with your specific tape model

Before You Order

Confirm the model (DI-TB8-6JPR-TTT-25), tape width (8 mm), and quantity before ordering. Ensure your installation meets the product's indoor, voltage, and current specifications.

• Fits 8 mm tape only — do not use with other tape widths.
• Use with a Class 2 DC constant-voltage LED driver and copper wiring rated for at least 176°F (80°C).
• Installation should follow local electrical codes and manufacturer guidance; consider a qualified electrician.
