Diode LED Tape Light Terminal Block, 8mm, Jumper Cable (Tape to Tape), 6 in 20 AWG Wire Lead, White (DI-TB8-6JPR-TTT-1)

Product Overview

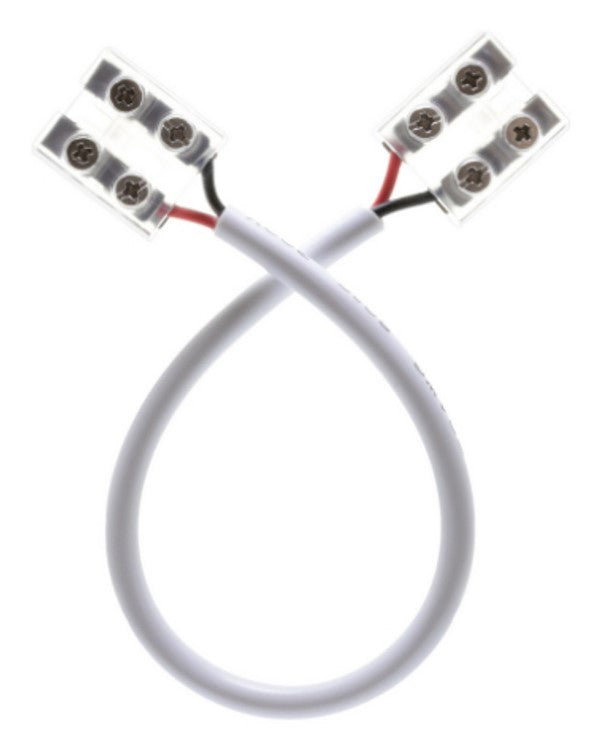

The Diode LED DI-TB8-6JPR-TTT-1 is a tape-to-tape jumper connector for 8mm LED tape. It has a 6-inch lead made with 20 AWG wire.

Its screw-down terminals secure the tape connections. The compact connector fits shallow channels and tight corners in indoor, low-voltage tape-light installations.

Key Features

• Tape-to-tape connection for 8mm LED tape
• 6-inch jumper cable with 20 AWG wire lead
• Screw-down terminals
• Clear casing designed to support a nearly seamless light line between connections

Connect Two Lengths of 8mm LED Tape

This SKU makes a tape-to-tape connection between 8mm LED tape sections. Its compact body can fit in shallow channels and tight corners, including tape-light returns.

6-Inch Jumper Lead and Screw-Down Terminals

The connector has a 6-inch, 20 AWG wire lead and screw-down terminals for the tape connection. Its clear casing is designed to support a nearly seamless light line between connections.

Electrical and Installation Requirements

The connector is specified for 12–24 VDC operation, with a maximum amperage of 5A at 12V or 4A at 24V. Install it with a Class 2 DC constant-voltage LED driver and follow applicable national and local electrical codes.

• Intended for indoor use.
• Specified ambient temperature range: -4°F to 122°F (-20°C to 50°C).
• The manufacturer specifies installation and service by a qualified, licensed electrician.

Before You Order

Confirm that your LED tape is 8mm wide and that a 6-inch tape-to-tape jumper suits your layout.
