Diode LED Tape Light Terminal Block, 8mm, Jumper Cable (Tape to Tape), 60 in 20 AWG Wire Lead, White - Pack of 25, Singles, 25 Pack (DI-TB8-60JPR-TTT-25)

Product Overview

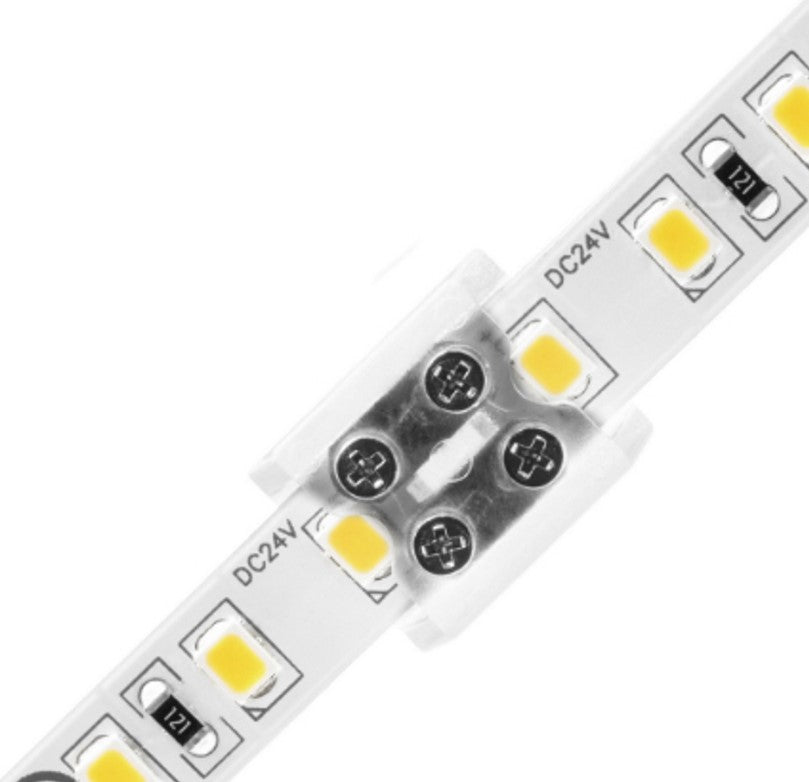

The Diode LED DI-TB8-60JPR-TTT-25 is a 25-count pack of solderless tape-to-tape terminal block connectors sized for 8 mm LED tape. Each connector uses a screw-down terminal and includes a 60 in jumper cable.

Designed for indoor low-voltage DC tape light systems, the connector features a clear housing intended to reduce visible seam at the connection and a compact body for use in shallow channels and tight corners.

Key Features

• Fits 8 mm LED tape.
• Pack of 25 connectors.
• Includes 60 in jumper cable (model designation) with 20 AWG leads.
• Screw-down terminal connection.
• Clear housing to minimize visible seam at the connection.
• Compact form factor suitable for shallow channels and returns.
• 5 year limited warranty (manufacturer).

What this connector does

The DI-TB8-60JPR-TTT-25 provides a solderless tape-to-tape splice for 8 mm LED tape using a screw-down terminal and an attached jumper cable to bridge runs or feed power between sections.

• Tape-to-tape connection sized for 8 mm LED tape.
• Clear housing designed to reduce visible seam between tape lengths.
• Sold as a 25-pack for multiple runs or repair needs.

Electrical ratings and wiring guidance

Refer to the manufacturer's specifications for electrical limits and wiring guidance before use.

• Voltage rating: 12–24 VDC.
• Maximum current: 5 A at 12 V, 4 A at 24 V (per spec sheet).
• Compatible wire gauge range for the connector family: 16–20 AWG; this model is supplied with 20 AWG leads.
• Use only copper wiring rated for at least 176°F (80°C) and install in accordance with national and local electrical codes.
• Use with Class 2 DC constant-voltage LED drivers as specified by the manufacturer.

Tape compatibility and channel fit

This connector is specifically sized for 8 mm LED tape and is intended to fit shallow channels and returns; verify physical fit with your tape and channel profile.

• Compatible tape width: 8 mm only.
• Manufacturer lists compatibility with a range of channel profiles; confirm fit with your chosen channel before installation.
• Compact design intended for tight corners and shallow channel installations.

Environment, temperature and safety notes

Observe the manufacturer's installation and safety guidance for proper and safe use.

• Environment: Indoor use only (per spec sheet).
• Ambient temperature rating: -4°F to 122°F (-20°C to 50°C).
• Follow installation requirements: install per national and local electrical codes; product intended to be installed and serviced by a qualified, licensed electrician.
• Tape light and attached leads are not rated for in-wall installation unless components are specifically rated; do not expose LED chips to direct sunlight or excessive heat.

Before You Order

Confirm your LED tape is 8 mm wide and that you need a pack of 25 connectors. Verify your system uses 12–24 VDC Class 2 drivers and that wiring meets the manufacturer's specified wire gauge and temperature ratings.

• For 8 mm LED tape only — do not use with other tape widths.
• Intended for indoor low-voltage installations; tape and leads are not rated for in-wall installation unless specifically rated.
• Installation should follow local electrical codes and is intended to be performed by a qualified, licensed electrician.

Ordering from Lumera Electric

Check the purchasing options shown on the Lumera Electric product page for Diode LED Tape Light Terminal Block, 8mm, Jumper Cable (Tape to Tape), 60 in 20 AWG Wire Lead, White - Pack of 25, Singles, 25 Pack (DI-TB8-60JPR-TTT-25). For project quantities or additional ordering requirements, use Request a Quote and provide the required quantity.
