Diode LED Tape Light Terminal Block, 8mm, Jumper Cable (Tape to Tape), 60 in 20 AWG Wire Lead, White (DI-TB8-60JPR-TTT-1)

Product Overview

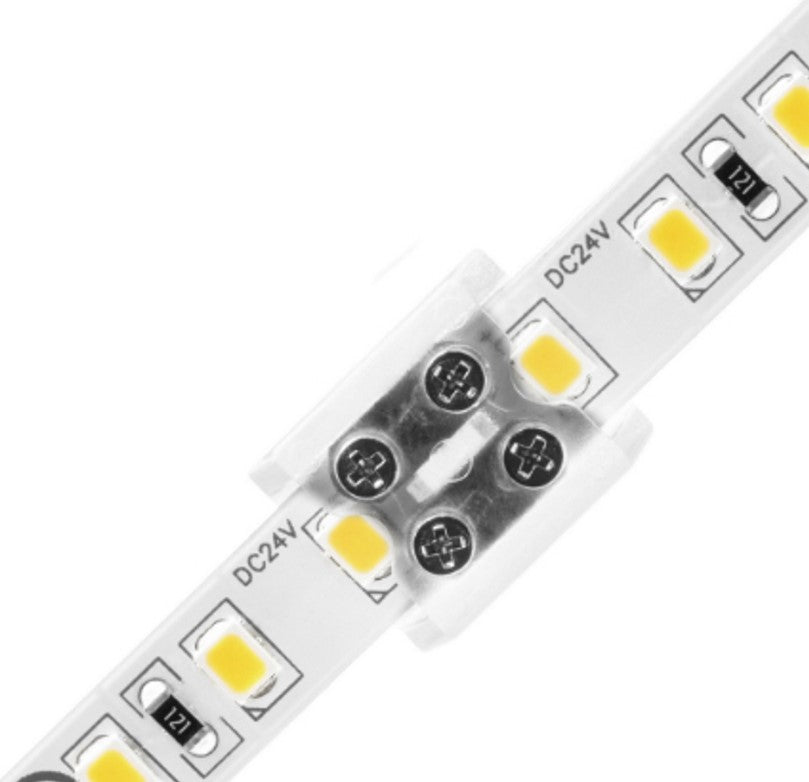

The Diode LED DI-TB8-60JPR-TTT-1 is a solderless tape-to-tape terminal block jumper made for 8 mm LED tape. It secures each tape end under screw terminals and has a clear casing intended to reduce visible dark spots at joins.

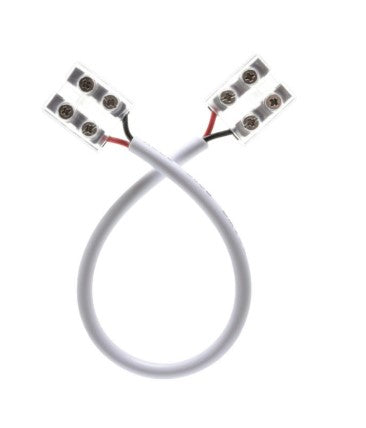

This jumper includes 60 inches of 20 AWG wire leads, 3M adhesive backing, and is rated for use with 12–24 VDC constant-voltage (Class 2) LED systems in indoor installations.

Key Features

• Designed for 8 mm LED tape — tape-to-tape terminal block jumper
• 60 in jumper with 20 AWG wire leads
• Screw-down connections with clear housing
• Includes 3M adhesive tape for positioning
• Electrical ratings: 12–24 VDC; maximum current 5 A at 12 V and 4 A at 24 V
• 5-year limited warranty

What this jumper does

The DI-TB8-60JPR-TTT-1 provides a solderless tape-to-tape splice for 8 mm LED tape runs. Each tape end is secured under screw terminals to create a continuous electrical and physical connection.

• Use to join two lengths of 8 mm tape where a jumper is needed.
• Recommended for interior low-voltage installations such as cabinets, coves, and returns.

Electrical ratings and limits

Use with 12–24 VDC constant-voltage LED systems and observe the maximum current limits for safe operation.

• Voltage: 12–24 VDC
• Maximum current: 5 A at 12 V; 4 A at 24 V
• Connector accepts 16–20 AWG wiring; this SKU includes 20 AWG leads

Installation and compatibility notes

Follow national and local electrical codes. The manufacturer specifies installation and servicing by a qualified, licensed electrician and use with a Class 2 DC constant-voltage LED driver.

• Fits 8 mm tape only — do not use with other tape widths.
• Ensure polarity matches on both sides of the connector when connecting tape.
• Not rated for in-wall or wet-location installation unless the specific tape and leads used are rated for those applications.
• Use copper wiring rated for at least 176°F (80°C).

Physical and accessory details

The compact connector body is intended to fit shallow channels and tight corners. The product ships with 3M adhesive tape for positioning or surface mounting.

• Compatible tape width: 8 mm
• Jumper length: 60 in (20 AWG leads)
• Clear casing to reduce visible seam or dark spots at the connection

Before You Order

Verify your LED tape is 8 mm wide and that your system uses a 12–24 VDC Class 2 constant-voltage driver before ordering.

• Only use copper wiring rated for at least 176°F (80°C).
• This product is intended for indoor use; do not assume suitability for in-wall or wet locations unless the tape and leads are rated for those conditions.
• Have a qualified, licensed electrician perform installation to comply with local codes.
