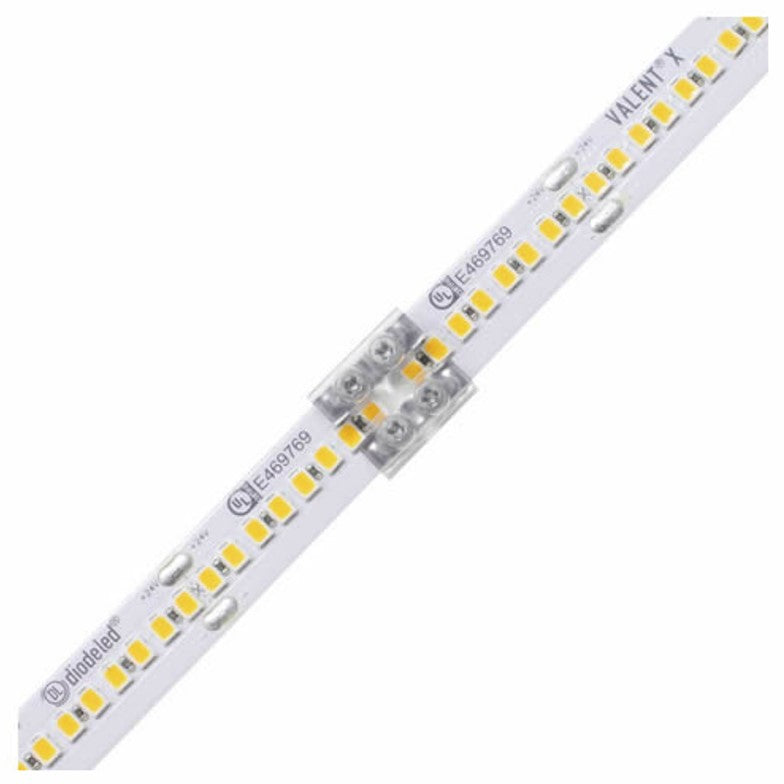

Diode LED Tape Light Terminal Block Connector, Screw Down, 12mm, Tape-To-Tape - Pack 25, individually bagged, 25 Pack (DI-TB12-CONN-TTT-25)

Product Overview

The Diode LED DI-TB12-CONN-TTT-25 is a screw-down tape-to-tape terminal block sized for 12 mm LED tape, providing a solderless method to join tape runs and attach lead wires in indoor low-voltage installations.

Supplied as a 25-pack (each connector individually bagged), the compact connector is intended to fit shallow channels and tight corners and accepts 14–20 AWG lead wire.

Key Features

• Screw-down terminals clamp LED tape and wire without soldering
• Compact body suitable for shallow channels and tight returns
• Accepts 14 AWG to 20 AWG lead wire
• Electrical rating: 12 V — 5 A; 24 V — 4 A
• Pack of 25 connectors, individually bagged

What this connector does

The DI-TB12-CONN-TTT-25 is a solderless tape-to-tape terminal block that joins two lengths of 12 mm LED tape and secures lead wires using screw-down terminals. It is intended for making power feeds and inline connections in low-voltage LED tape installations.

• Solderless connection using screw-down clamps
• Designed specifically for 12 mm wide LED tape
• Used for feeding power to runs and making inline tape connections

Electrical ratings and wire compatibility

Use the connector within its rated voltage and current limits and with compatible feed conductors to match typical low-voltage tape loads.

• Voltage: 12–24 VDC
• Maximum current: 12 V — 5 A; 24 V — 4 A
• Accepts 14 AWG to 20 AWG wire

Installation and mounting considerations

The connector's compact body fits into shallow channels and tight corners where space is limited. It is rated for indoor use in non-wet locations.

• Compact footprint fits shallow channels and returns
• Intended for indoor, non-wet locations
• Screw terminals eliminate the need for soldering

Dimensions and packaging

Confirm physical size and packaging quantities when planning multiple runs or replacement work.

• Connector dimensions: Length = 0.62", Width = 0.59", Height = 0.26"
• Package quantity: 25 connectors, each individually bagged

Before You Order

Check tape width and intended installation location before ordering.

• Verify your LED tape is 12 mm width.
• Ensure expected run current does not exceed the connector rating.
