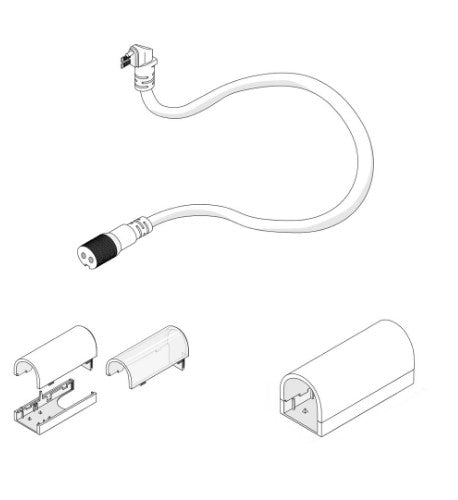

Diode LED NEON BLAZE Side Bending, Bottom Wire Entry Connector and Frosted end cap pair (DI-SE-NB-BWC-EC)

Product Overview

Accessory for Diode LED NEON BLAZE 24V side‑bending LED strip system. Includes a bottom wire entry connector (16 AWG) and paired frosted end cap/connector covers.

Constructed from UV/IR resistant silicone and listed as a NEON BLAZE accessory for 24V constant‑voltage strip installations.

Key Features

• Bottom wire entry connector for NEON BLAZE side‑bending accessories (DI-SE-NB-BWC-EC)
• Includes frosted end cap and connector covers (opaque and frosted options referenced in accessory sheet)
• Material: UV/IR resistant silicone
• Accessory length: 12" as listed on the manufacturer accessory sheet
• Designed for use with 24VDC constant‑voltage NEON BLAZE systems; 16 AWG wiring noted on accessory sheet

What this accessory does

The DI-SE-NB-BWC-EC is a bottom wire entry connector accessory for the NEON BLAZE side‑bending 24V LED strip accessory family. It provides a bottom entry point for field wiring and is provided with frosted end cap and connector covers as shown in the manufacturer accessory sheet.

• Bottom wire entry connector for NEON BLAZE side‑bending accessories
• Includes frosted end cap and connector covers referenced in the accessory documentation

Compatibility and electrical notes

This accessory is part of the NEON BLAZE 24V accessory set and is shown for use with 24VDC constant‑voltage systems in the manufacturer documentation.

• System voltage reference in manufacturer documentation: 24VDC constant voltage
• Wire gauge shown on accessory sheet: 16 AWG
• Use only with a properly specified constant‑voltage Class 2 LED driver for the overall NEON BLAZE strip system (driver selection and sizing are the responsibility of the system designer/installer)

Environmental ratings, temperature range, and safety

Manufacturer accessory documentation lists UV/IR resistant silicone as the material and provides IP65 designation for NEON BLAZE accessories. Temperature ranges and safety information are provided by the manufacturer.

• Material: UV/IR resistant silicone
• Ingress protection: IP65 referenced for NEON BLAZE accessories in the spec sheet
• Ambient temperature guidance in manufacturer materials: -20°C to 50°C (-4°F to 122°F)
• Operating temperature range listed: -20°C to 80°C (-4°F to 176°F)
• Manufacturer notes flame‑retardant performance and glow‑wire testing (650°C/1200°F) for the product family
• NEON BLAZE system UL reference: UL Listed 2108 Low Voltage Lighting Systems (File # E469769) as listed in manufacturer documentation

Physical size and installation

Dimensions for the accessory are shown on the NEON BLAZE accessory drawings. The accessory length is listed as 12" on the manufacturer accessory sheet.

• Connector length: 12" (manufacturer accessory sheet)
• Intended to interface with NEON BLAZE side‑bending profiles and channels as part of the accessory family
• Manufacturer guidance: install in accordance with national and local electrical codes and by a qualified, licensed electrician
• Not for use in submerged applications (pools, fountains) per manufacturer guidance
• Do not modify or disassemble the accessory beyond instructions; doing so may void warranty

Before You Order

Confirm the model number and that this accessory matches your NEON BLAZE side‑bending strip profile before ordering.

• Verify that a bottom wire entry connector is the correct accessory for your layout.
• Confirm you are using a compatible 24VDC constant‑voltage Class 2 driver for the NEON BLAZE strip system.
