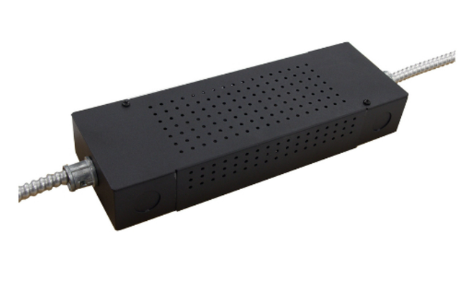

Diode LED OMNIDRIVE X 24V 30W, 2in1 Electronic and 0-10V LED Dimmable Driver, Indoor/Outdoor Rated Junction Box (DI-ODX-24V30W-J)

Product Overview

The Diode LED DI-ODX-24V30W-J is a 24 VDC constant-voltage LED driver rated for up to 30 W that supports 0–10V dimming. It is part of the OMNIDRIVE X family and is offered with a junction box (J suffix) providing a NEMA3R wet-location enclosure.

Designed for powering low-voltage LED tape and fixtures, this model accepts 100–277 VAC input and carries cULus listings and a 5 Year Limited Warranty.

Key Features

• 24 VDC constant-voltage output for LED tape and low-voltage fixtures
• 30 W maximum load (Class 2 for this model)
• 0–10V dimming input (0.2 mA) with dim-to-dark performance documented for the family
• Universal input: 100–277 VAC, 50/60 Hz
• Junction-box (J) version provides NEMA3R outdoor/wet-location rating; without junction box the driver is for indoor/damp locations (IP20)
• cULus listed (UL # E499308) and covered by a 5 Year Limited Warranty

What this driver does

The DI-ODX-24V30W-J provides a regulated 24 VDC constant-voltage output up to 30 W for powering LED tape and low-voltage fixtures.

• Constant-voltage output suitable for LED tape and fixtures
• Rated maximum load: 30 W (Class 2 for this 24V 30W model)

Dimming and control compatibility

This OMNIDRIVE X SKU supports 0–10V dimming (0.2 mA). The OMNIDRIVE X family documents dim-to-dark performance; this model is specified for 0–10V control.

• 0–10V control input (0.2 mA)
• Family-level documentation indicates dim-to-dark performance

Electrical and load requirements

Use a 100–277 VAC input supply and do not exceed the 30 W maximum output at 24 VDC. The driver includes internal protection that shuts down and recovers after a fault condition is removed.

• Input: 100–277 VAC, 50/60 Hz
• Output: 24 VDC, maximum 30 W
• No minimum load required; internal fault protection with auto-recover

Environment and junction box rating

The J-suffix (junction box) model provides a NEMA3R rating for outdoor/wet locations. The driver without the junction box is intended for indoor/damp locations (IP20).

• With junction box (J): NEMA3R — outdoor/wet locations
• Without junction box: IP20 — indoor/damp locations

Dimensions and mechanical

The junction-box version uses the OMNIDRIVE X 24V 30W mechanical form factor with compact dimensions suitable for contractor installations.

• Approximate dimensions with junction box: Length 6.5 in (166 mm) × Width 3.7 in (94 mm) × Height 1.57 in (40 mm)
• Input and output connection type for the junction-box variant: terminal connections

Certifications and warranty

This model is cULus listed and compliant with applicable ANSI/UL and Canadian standards referenced on the specification sheet, and it is covered by a 5 Year Limited Warranty.

• cULus Listed (UL # E499308); ANSI/UL 1310 and CAN/CSA C22.2 No.250.13 referenced
• FCC Part 15 compliant
• 5 Year Limited Warranty

Before You Order

Verify the DI-ODX-24V30W-J model is the required junction-box version and that the connected LED load does not exceed 30 W at 24 VDC.

• Confirm model and quantity before ordering.
• Ensure the control system provides a compatible 0–10V interface.
