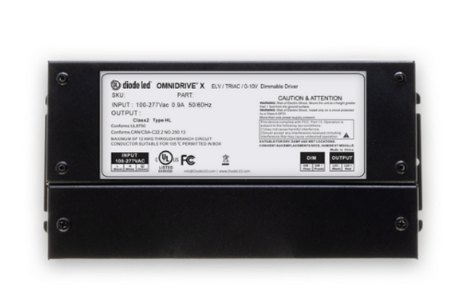

Diode LED OMNIDRIVE X 24V 120W, 2in1 Electronic and 0-10V LED Dimmable Driver, Indoor/Outdoor Rated Junction Box (DI-ODX-24V120W-J)

Product Overview

The DI-ODX-24V120W-J is a constant-voltage LED driver that delivers up to 120 W at 24 VDC and supports 0–10V dimming. This model includes the required junction box (-J) and is rated for outdoor/wet locations when installed with that enclosure.

Part of the OMNIDRIVE X family, the platform supports ELV, TRIAC and 0–10V dimming methods; this specific SKU provides 0–10V control and is UL/cULus listed with a 5-year limited warranty.

Key Features

• 24 VDC constant-voltage output, 120 W maximum (DI-ODX-24V120W-J)
• 0–10V dimming control (0.2 mA rated for 0–10V)
• Includes required junction box (’-J’) with NEMA3R rating for outdoor/wet locations when installed with the enclosure
• Universal input 100–277 VAC, 50/60 Hz; no minimum load
• cULus listed (UL # E499308), ANSI/UL 1310 power unit, CAN/CSA C22.2 No.250.13, FCC Part 15 compliant; 5-year limited warranty; Title 24 JA8/JA10 compliant

What this driver does

The DI-ODX-24V120W-J supplies regulated 24 VDC power for LED tape and low-voltage fixtures up to 120 W. It is intended for commercial low-voltage lighting applications that require a constant-voltage driver with 0–10V dimming.

• Provides regulated 24 VDC output for LED tape and fixtures
• Includes the required junction box (-J) for this 120 W model

Electrical performance and dimming

This driver accepts universal AC input and offers high-performance dimming on the OMNIDRIVE X platform. The DI-ODX-24V120W-J supports 0–10V control as indicated in the specification sheet.

• Input: 100–277 VAC, 50/60 Hz
• Output: 24 VDC, maximum 120 W
• Dimming: 0–10V control (0.2 mA specified); OMNIDRIVE X platform also supports ELV and TRIAC dimming on other SKUs
• No minimum load required

Environment ratings and certifications

When installed with its junction box, this model is rated for outdoor/wet locations (NEMA3R). The unit carries recognized safety listings appropriate for commercial installations.

• Environment with junction box: Outdoor / Wet Location (NEMA3R)
• Certifications: cULus listed (UL # E499308), ANSI/UL 1310, CAN/CSA C22.2 No.250.13, FCC Part 15
• Title 24 JA8/JA10 compliance noted in manufacturer documentation

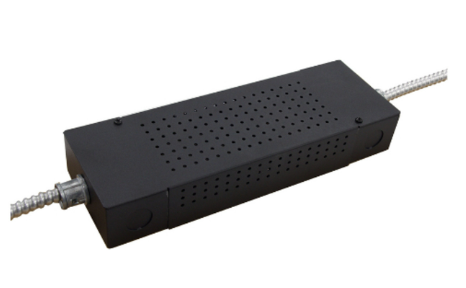

Physical dimensions and junction box

The model designation includes a 'J' indicating the required junction box. The junction box combines the driver and wiring enclosure and provides the rated environmental protection.

• Model: DI-ODX-24V120W-J (’J’ = required junction box)
• Dimensions (driver with junction box): 8.66 x 3.7 x 1.57 in (L x W x H)

Installation and wiring notes

Installation should follow national and local electrical codes and be completed by a qualified, licensed electrician. The specification sheet includes installer guidance and warnings that should be followed.

• Use copper wiring rated for at least 176°F (80°C)
• Each maximum LED run requires a dedicated power feed from the driver; do not exceed recommended maximum run length
• Internal protection: automatic shutdown with automatic recovery after fault removal
• Ambient temperature range: −40 to 140°F (−40 to 60°C); operating range: −22 to 158°F (−30 to 70°C)
• Do not modify the product; improper installation may void the warranty

Before You Order

Verify the model number and that the connected LED load does not exceed 120 W at 24 VDC. Installation must comply with local electrical codes and be performed by a qualified electrician.

• Ensure LED runs are within recommended maximum run length and use dedicated power feeds as required
• Use copper conductors rated for at least 176°F (80°C) and appropriate wiring for wet locations where applicable
