Diode LED OMNIDRIVE X 12V 120W, 2in1 Electronic and 0-10V LED Dimmable Driver, Indoor/Outdoor Rated Junction Box (DI-ODX-12V120W-J)
SKU: DI-ODX-12V120W-J
Price:
$279.45
Free shipping on orders over $1,500
Description

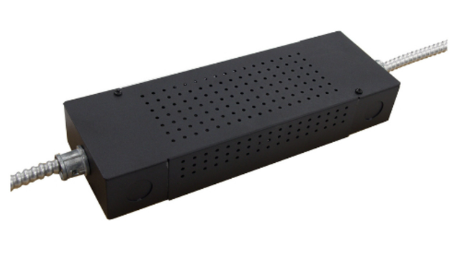

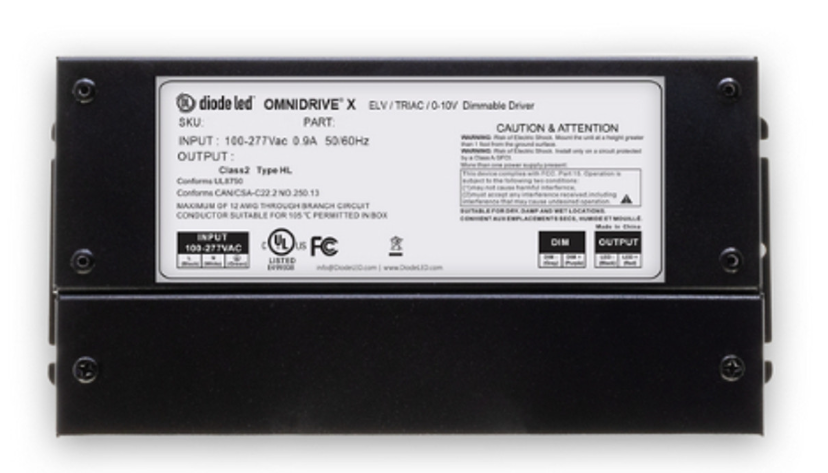

Built for commercial low-voltage lighting, the Diode LED DI-ODX-12V120W-J is a 120 W 12 VDC LED driver with 0-10V control. It supplies regulated low-voltage output for LED tape and fixtures on managed lighting circuits.
Key Features
- 0-10V control integrates with commercial dimming panels and sensors
- Integrated LO-PRO junction box combines driver and wiring box in one low-profile housing
- Regulated constant-voltage output drives LED tape and fixtures at a stable voltage
Technical Specifications
| Brand | Diode LED |
|---|---|
| Model / SKU | DI-ODX-12V120W-J |
| Product Type | LED Driver |
| Output Voltage | 12 VDC |
| Wattage | 120 W |
| Output Type | Constant Voltage |
| Dimming Type | 0-10V |
Applications
Common applications include:
- Low-voltage LED tape and fixture power
- Commercial dimming lighting systems
- Retrofit and new-construction low-voltage lighting
Confirm the connected load stays within 120 W at 12 VDC and drive it from a 0-10V control.
Lumera Electric carries the Diode LED 120 W driver for commercial LED lighting builds.
