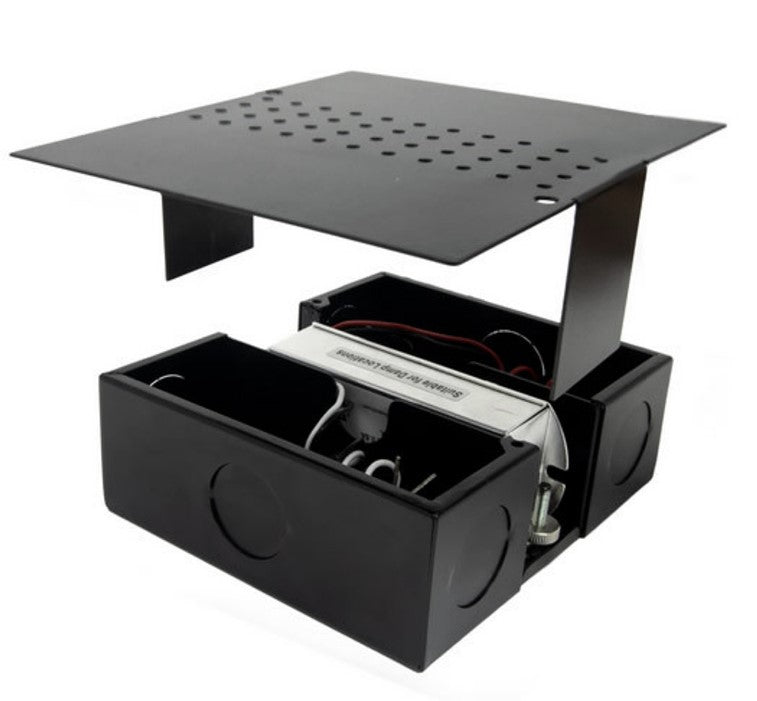

Diode LED LO-PRO ELV Junction Box and Driver Combo - OMNIDRIVE BASICS ELV Driver - 24V, 60W (DI-ODBELV-24V60W-LPELV)

Product Overview

The Diode LED DI-ODBELV-24V60W-LPELV is an OMNIDRIVE BASICS electronic dimmable driver with 24V DC constant-voltage output and a maximum load of 60W.

This model includes a LO-PRO junction box, supports ELV dimming, has no minimum load, and is specified for indoor or damp-location use.

Key Features

• 24V DC constant-voltage output; 60W maximum load
• ELV dimming to 5% with no minimum load
• LO-PRO junction box
• Class 2; UL Listed in a junction box

24V Constant-Voltage Output

The DI-ODBELV-24V60W-LPELV provides 24V DC constant-voltage output with a maximum load of 60W. It is intended to power compatible low-voltage LED tape and fixtures; the total connected load must not exceed 60W.

ELV Dimming

This driver uses ELV dimming, has no minimum load, and is specified for smooth dimming to 5%. The manufacturer recommends select Lutron and Leviton dimmer models; check the exact model for compatibility.

Junction Box and Wire Leads

The LPELV version combines the driver with a LO-PRO junction box. Its input and output connections are wire leads, and its input is 120V AC, 50/60Hz.

• Input: 8-inch, 18 AWG bare leads; AC/L black and AC/N white.
• Output: 8-inch, 18 AWG bare leads; V+ red and V− black.

Dimensions and Environment

The driver-and-junction-box assembly measures 5.5 × 4.7 × 1.91 inches (L × W × H). The manufacturer specifies indoor/damp-location use and IP20.

Compatibility and Installation

OMNIDRIVE BASICS is not for use with ALPHATECH X, DAZZLE RGB, STREAMLITE, VALENT, or VALENT X lighting. The manufacturer specifies installation and service by a qualified, licensed electrician in accordance with national and local electrical codes.

Before You Order

Confirm the connected load is no more than 60W and that the selected control is an ELV dimmer.
