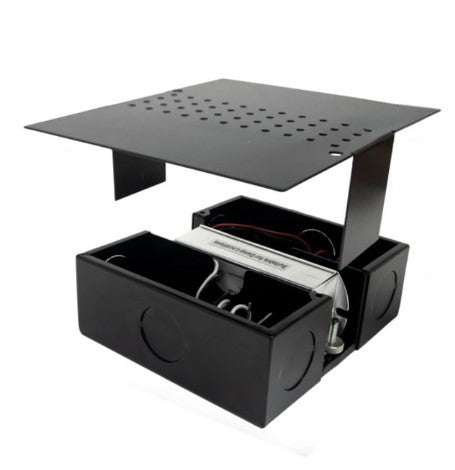

Diode LED LO-PRO ELV Junction Box and Driver Combo - OMNIDRIVE BASICS ELV Driver - 12V, 60W (DI-ODBELV-12V60W-LPELV)

Product Overview

The Diode LED DI-ODBELV-12V60W-LPELV is an OMNIDRIVE BASICS electronic dimmable driver with 12 VDC constant-voltage output and a maximum load of 60 W. The LPELV version combines the driver and junction box in one housing.

It has no minimum load and supports smooth dimming to 5%. Confirm that the connected lighting and ELV control are suitable for the intended system.

Key Features

• 12 VDC constant-voltage output; maximum load 60 W
• ELV dimming, with no minimum load and dimming to 5%
• Integrated LO-PRO junction box
• 120V AC, 50/60Hz input
• UL Listed, Class 2

12 VDC output and maximum load

This driver provides 12 VDC constant-voltage output with a maximum load of 60 W. The source describes OMNIDRIVE BASICS as a driver for LED lighting; confirm the connected product is suitable for this driver.

• Output: 12 VDC
• Output type: Constant voltage
• Maximum load: 60 W

ELV dimming

The DI-ODBELV-12V60W-LPELV is an electronic dimmable ELV driver. It has no minimum load and supports smooth dimming to 5%.

LO-PRO junction box configuration

The LPELV model combines the driver and junction box in one housing. Its dimensions are 5.5 × 4.7 × 1.91 inches (length × width × height).

Electrical and environmental specifications

The driver input is 120V AC, 50/60Hz. Input and output connections use wire leads; each side has 8-inch, 18 AWG bare leads. The specified environment is indoor/damp location (IP20).

• Input: 120V AC, 50/60Hz, 0.5A
• Ambient temperature: -40 to +60°C
• Operating temperature: -30 to +70°C
• Certification: UL Listed, Class 2

Lighting-system compatibility

OMNIDRIVE BASICS is not for use with ALPHATECH X, DAZZLE RGB, STREAMLITE, VALENT, or VALENT X lighting.

Before You Order

Confirm that the connected lighting and ELV control are suitable for this driver; it is not for use with ALPHATECH X, DAZZLE RGB, STREAMLITE, VALENT, or VALENT X lighting.
